Vanity Mirror Assembly Replacement

Description:

Remove or disconnect
- Lift the mirror cover.
1. Mirror assembly.

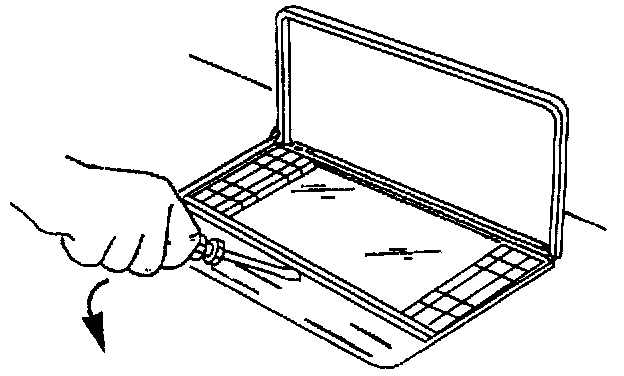

- Insert the blade of a small screwdriver between the mirror assembly and the core assembly at several points along the bottom edge. Gently pry downward to lift off the mirror assembly.

Description:

2. Wires.

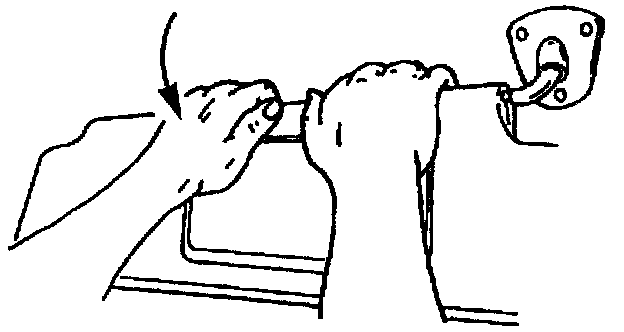

- Cut the wires along dotted line, as shown in image then pull the wires down to unhook them.

Description:

Install or Connect
1. Wires.
- The wires may need to have the insulation stripped back about 10 mm (0.40 inch). Push the wires through.
2. Mirror assembly.
A. With the cover open, insert the three tabs on the bottom of the mirror assembly into the slots in the vanity pocket.
B. Close the cover and push the mirror assembly against the top edge of the pocket. Press firmly on the top edge to snap it into place.
