Home
>>
Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Marker Lamp
>>
Diagrams
>>
Connector Views
Connector Views

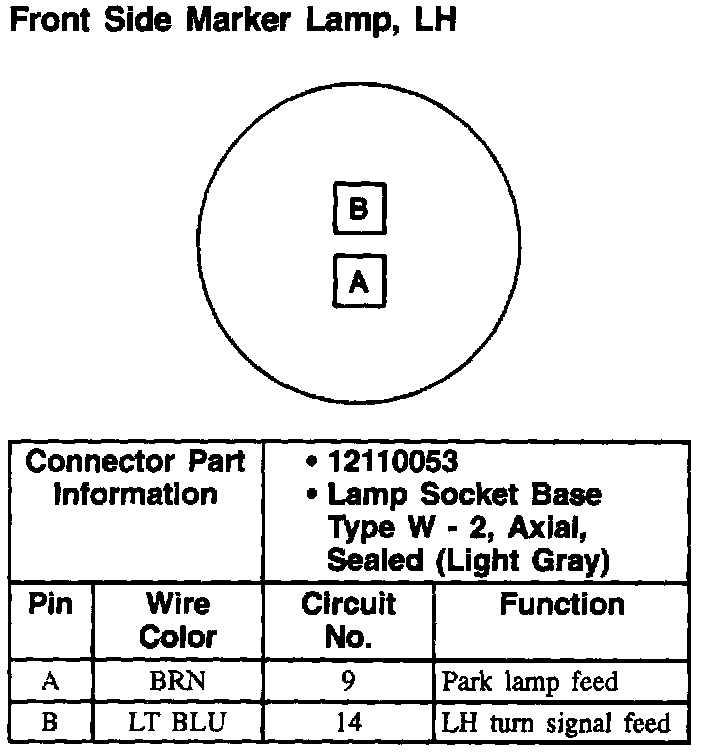

Front Side Marker Lamp, LH:

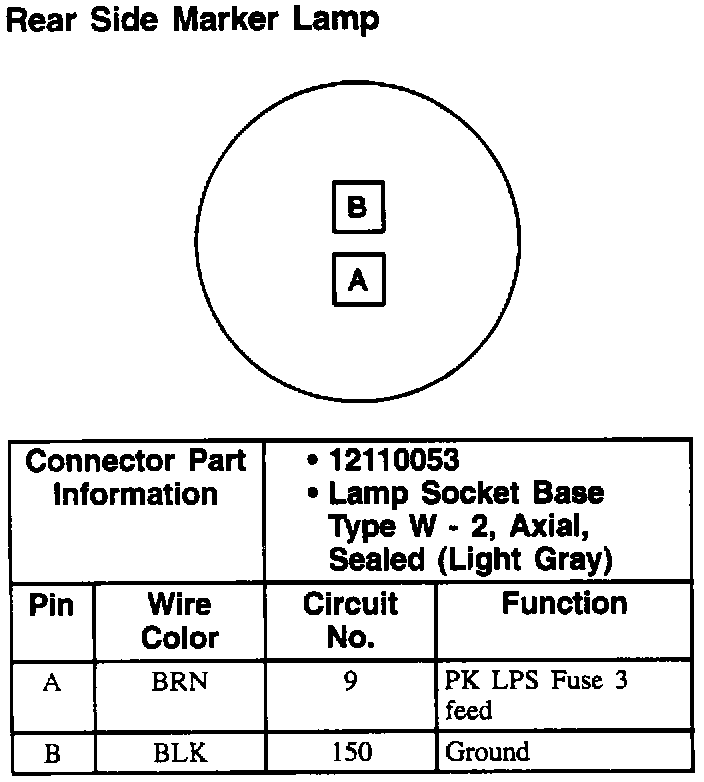

Rear Side Marker Lamp:
Front Side Marker Lamp, RH:
