Door Switch: Diagrams

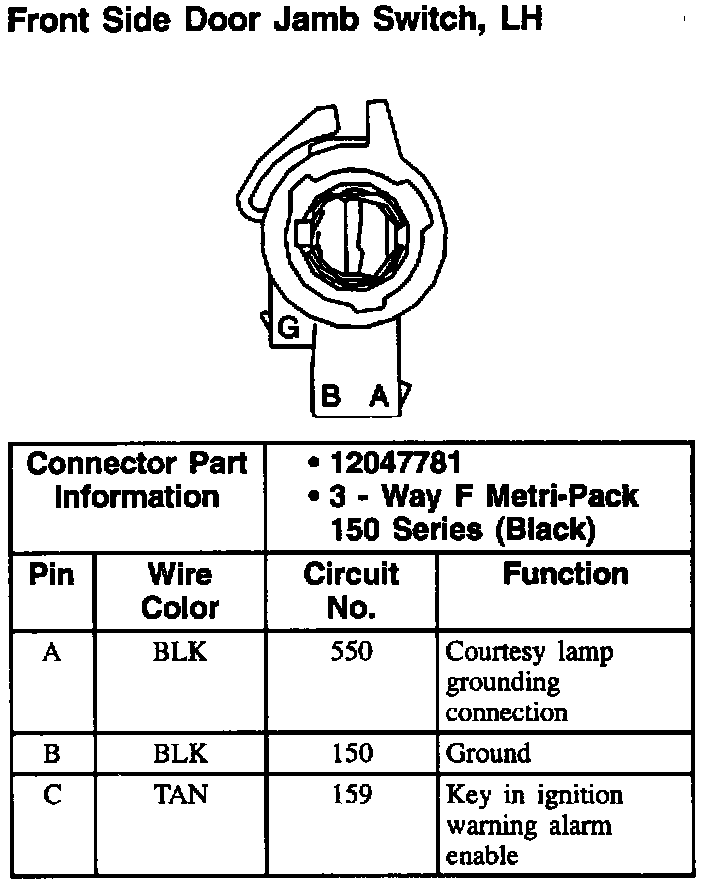

Front Side Door Jamb Switch, LH:

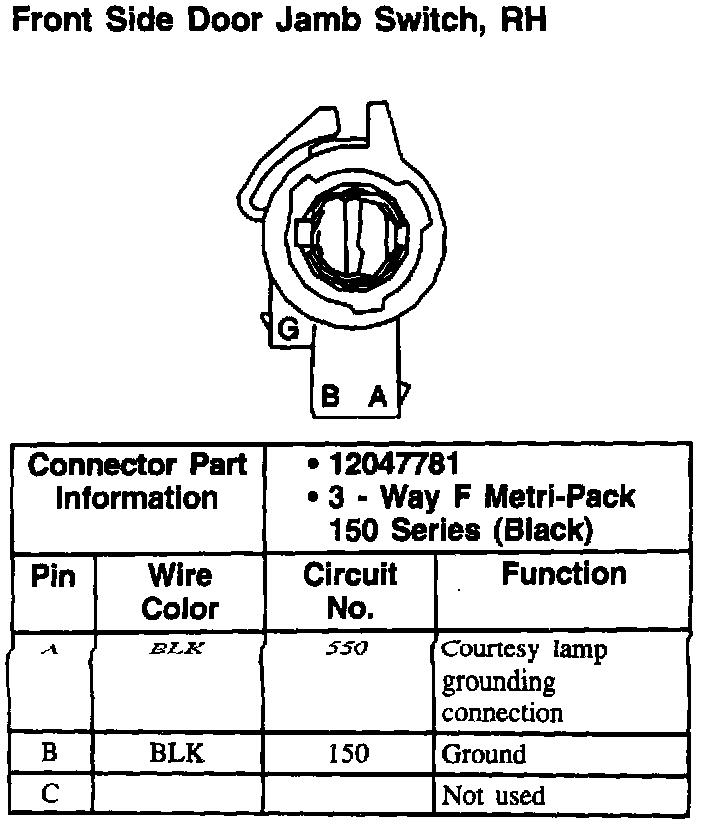

Front Side Door Jamb Switch, RH:

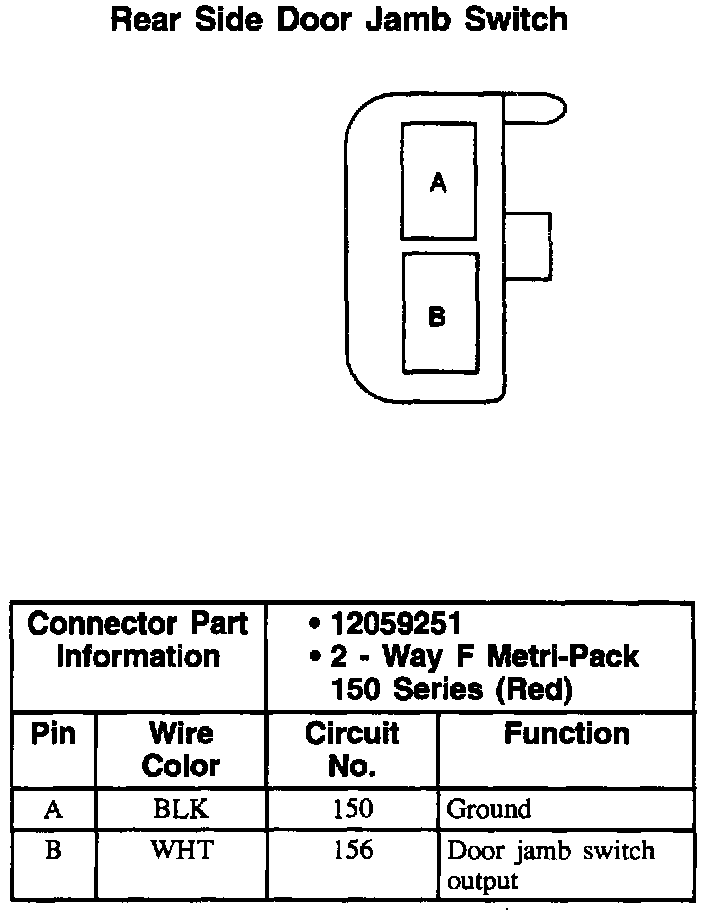

Rear Side Door Jamb Switch:
