Windshield Defroster Nozzle

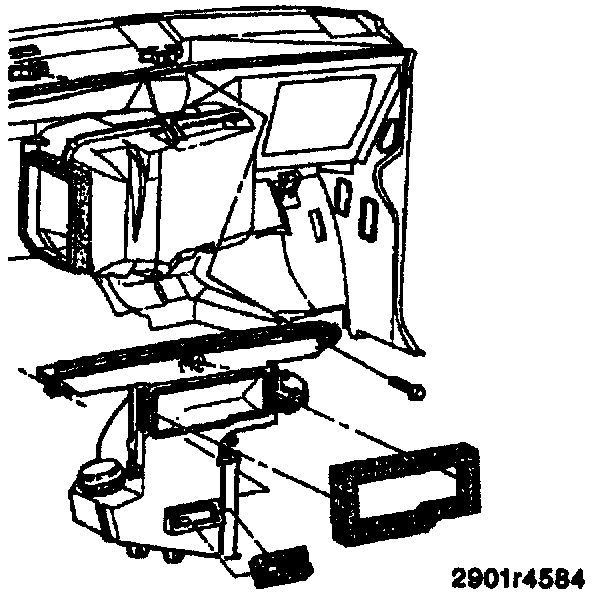

Windshield Defroster Nozzle:

Remove or Disconnect
1. Instrument panel.
2. Vacuum connectors, as necessary.
3. Windshield defroster nozzle screws.
4. Windshield defroster nozzle from heater assembly.

Install or Connect
1. Windshield defroster nozzle to heater assembly.
2. Windshield defroster nozzle screws.
- Tighten screws to 2 Nm (18 in. lbs.).
3. Vacuum connectors, as necessary.
4. Instrument panel.
