Floor Air Outlet Replacement

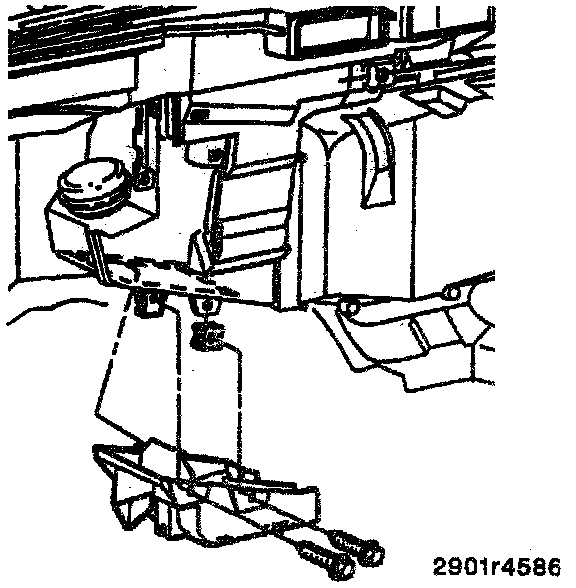

Floor Air Outlet:

REMOVE OR DISCONNECT


1. Floor air outlet screws.

2. Floor air outlet


INSTALL OR CONNECT


1. Floor air outlet.


NOTICE: Refer to "Fasteners" under "Vehicle Damage Warnings."


2. Floor air outlet screws.

- Tighten screws to 3.1 Nm (27 lbs. in.).
