Home >> Chevy Truck >> 1997 >> S10/T10 P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> New Venture Gear NV1500 Manual Transmission >> Transmission Gear Components

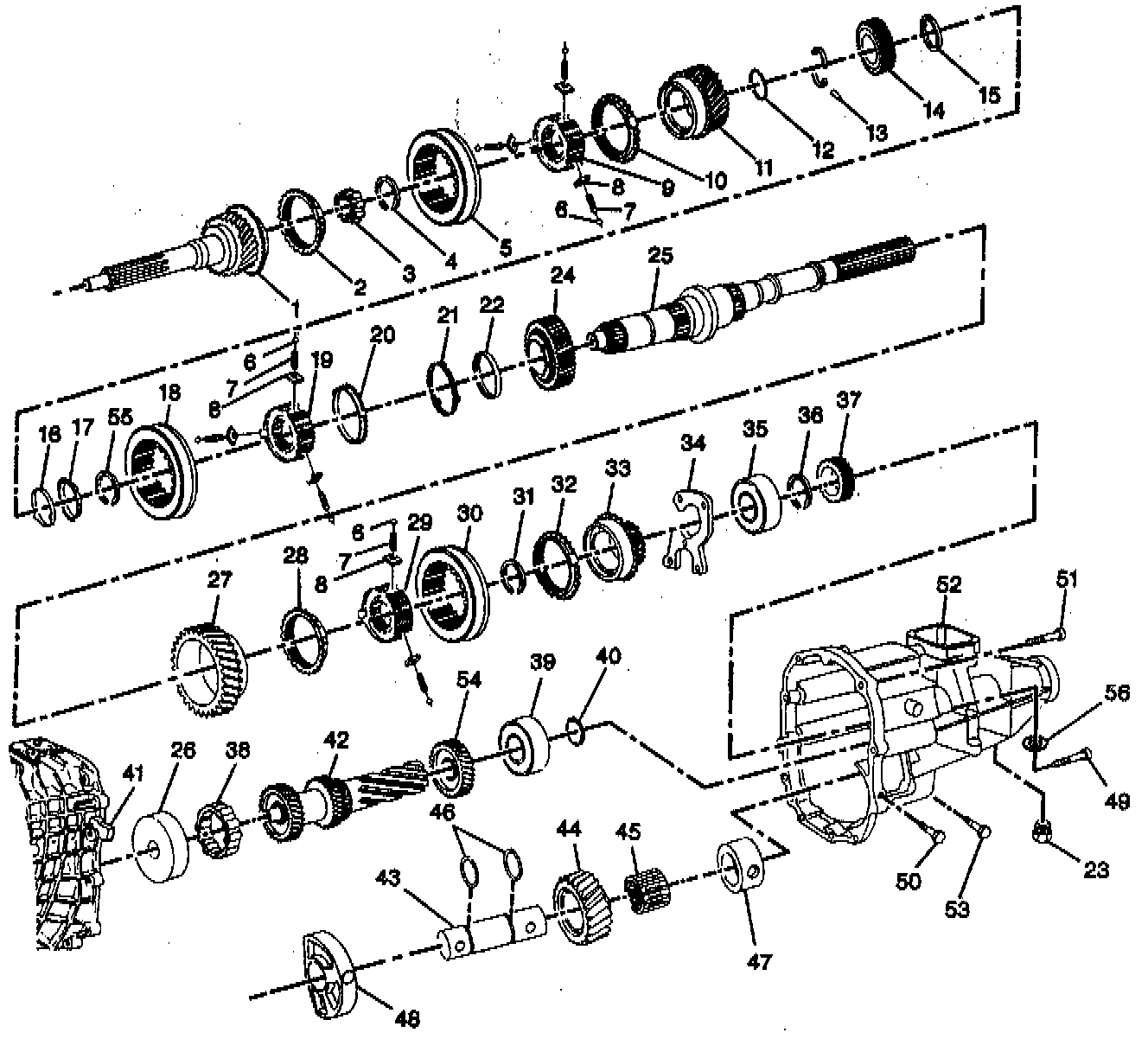

Transmission Gear Components

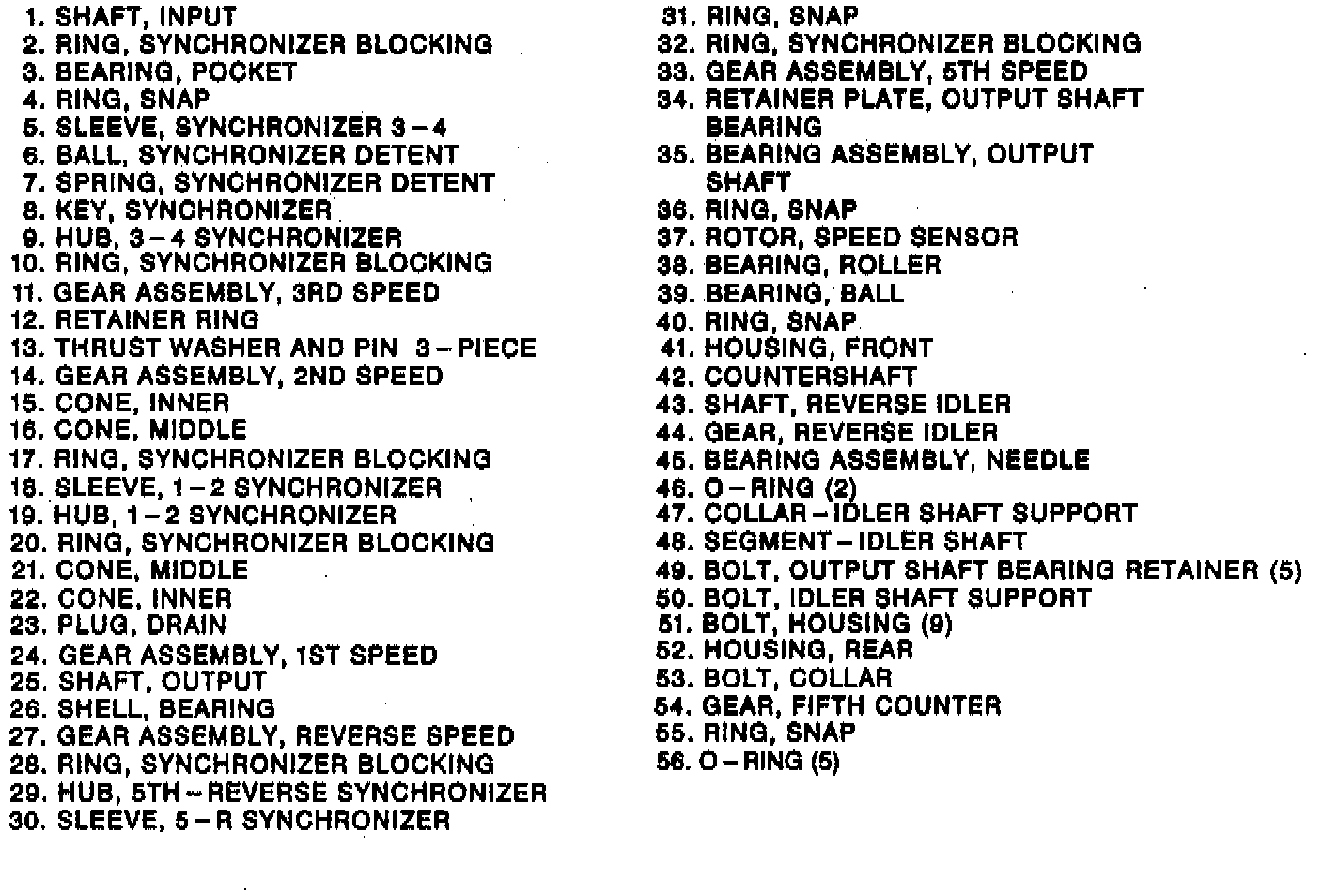

Part 1 Of 2:



Part 2 Of 2:
