Home >> Chevy Truck >> 1997 >> S10/T10 P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Speaker System >> Extended Cab

Extended Cab

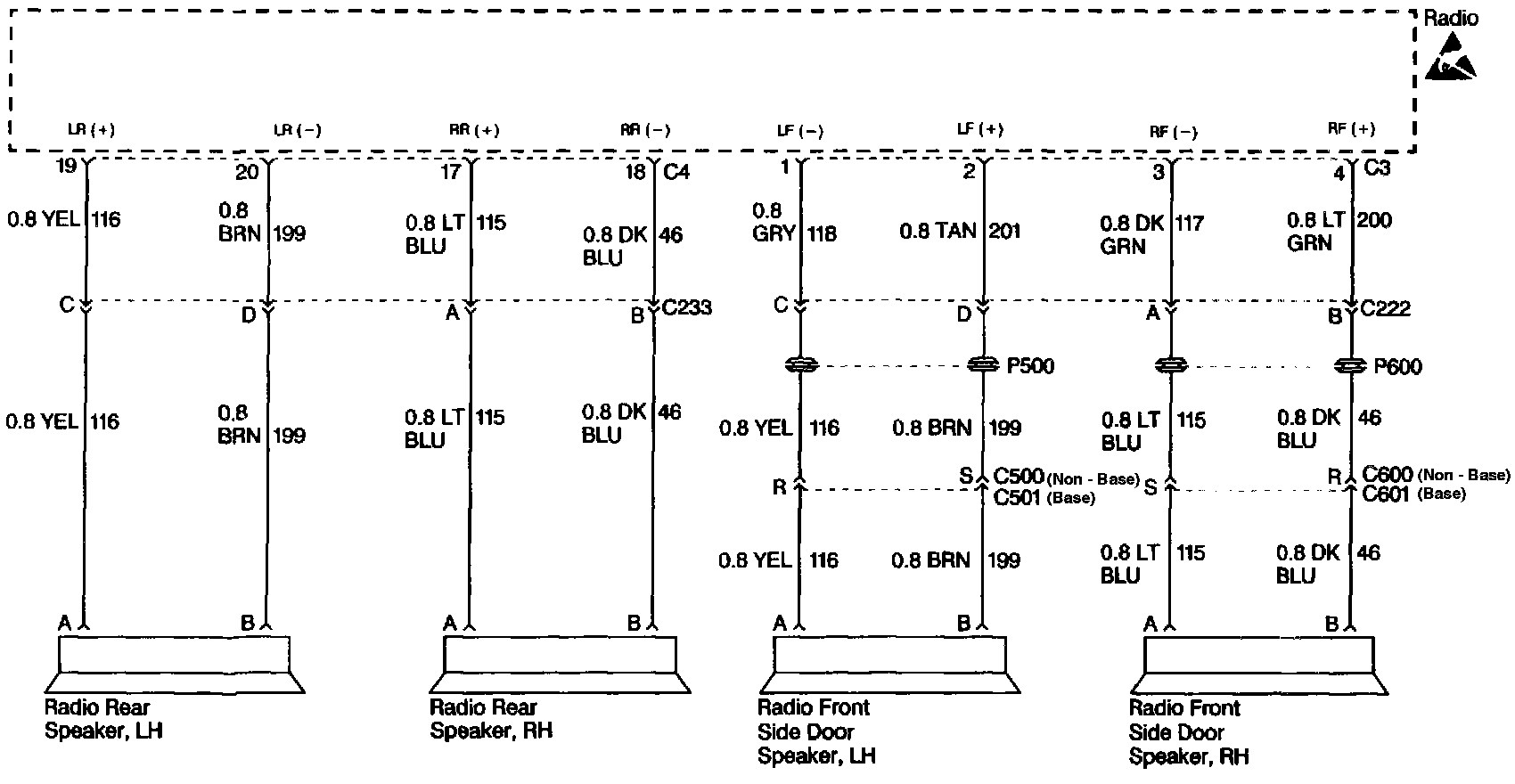

Radio Speakers (Extended Cab W/O Cargo Door):
