Home
>>
Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Interior Lamps
>>
Dome, Console, Courtesy, CIG Lighter and I/P Compart Lamps
>>
Without Interior Lamp Control Module
Without Interior Lamp Control Module

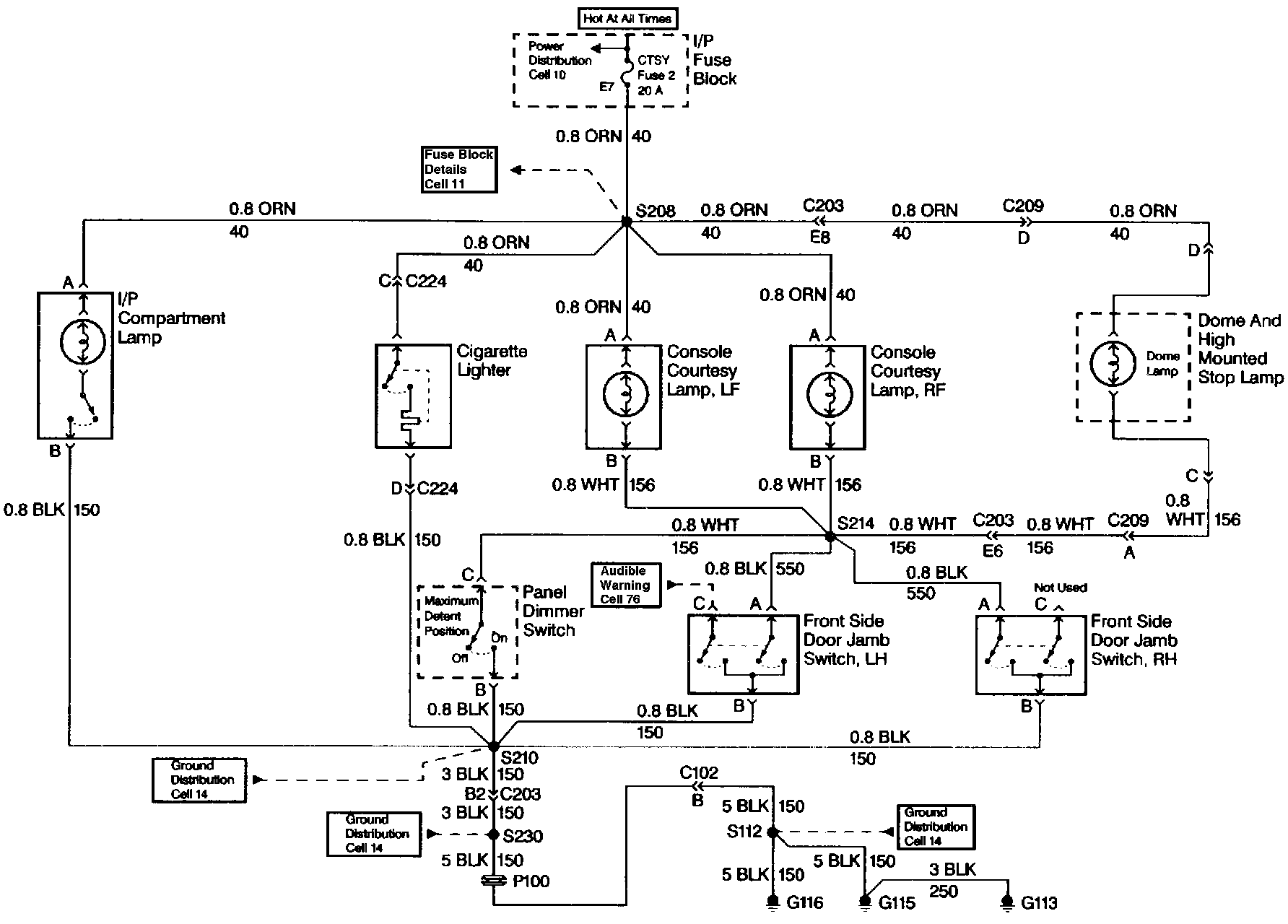

Interior Lights: CTSY Fuse 2 - Base:
