Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Interior Lighting Module
>>

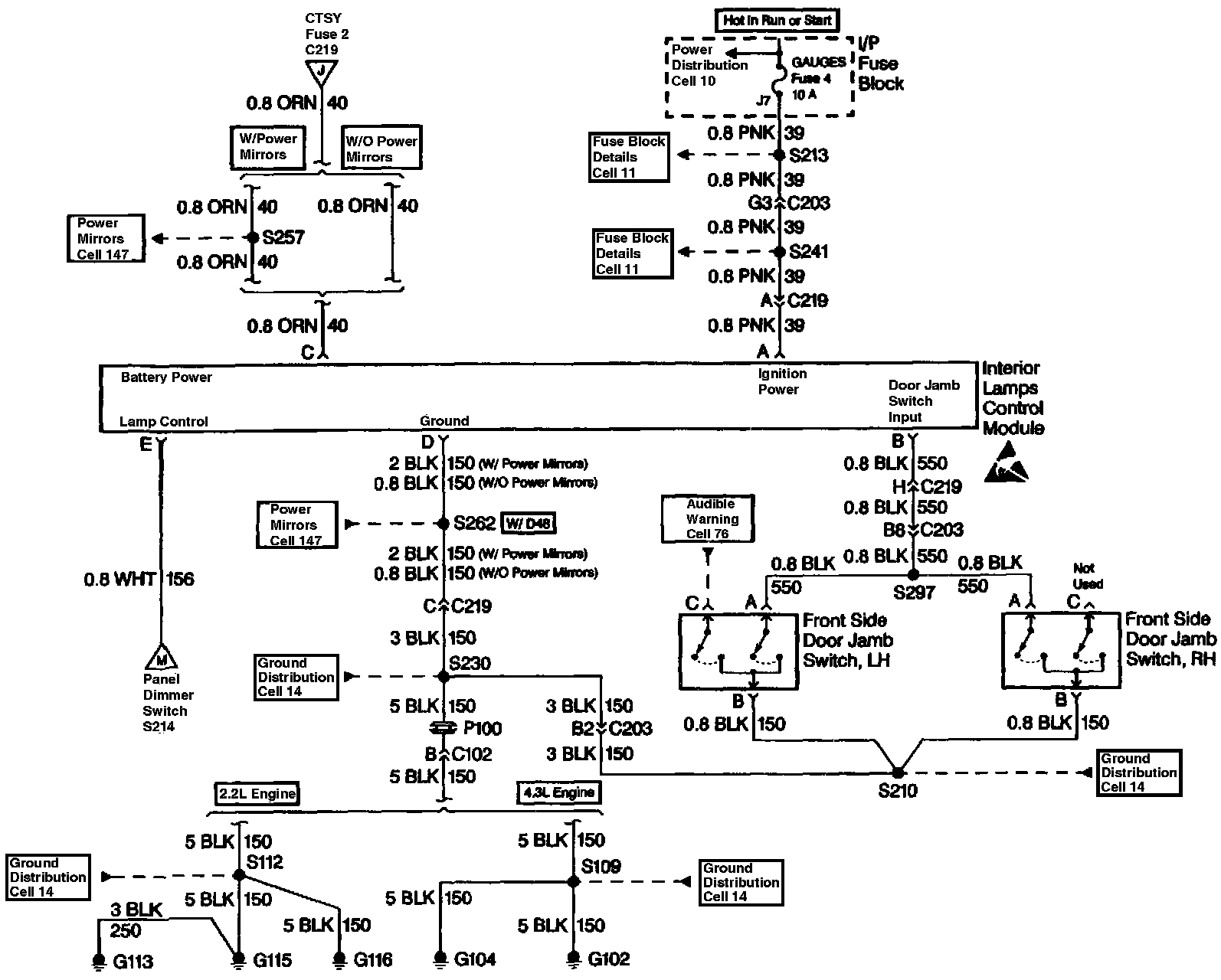

Interior Lamp Control Module
Interior Lamp Control Module
CTSY Fuse 2 - W/ Interior Lamps Control Module:
