Home >> Chevy Truck >> 1997 >> S10/T10 P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Solenoid, A/T >> Shift Solenoid Valve >> 2-3

2-3

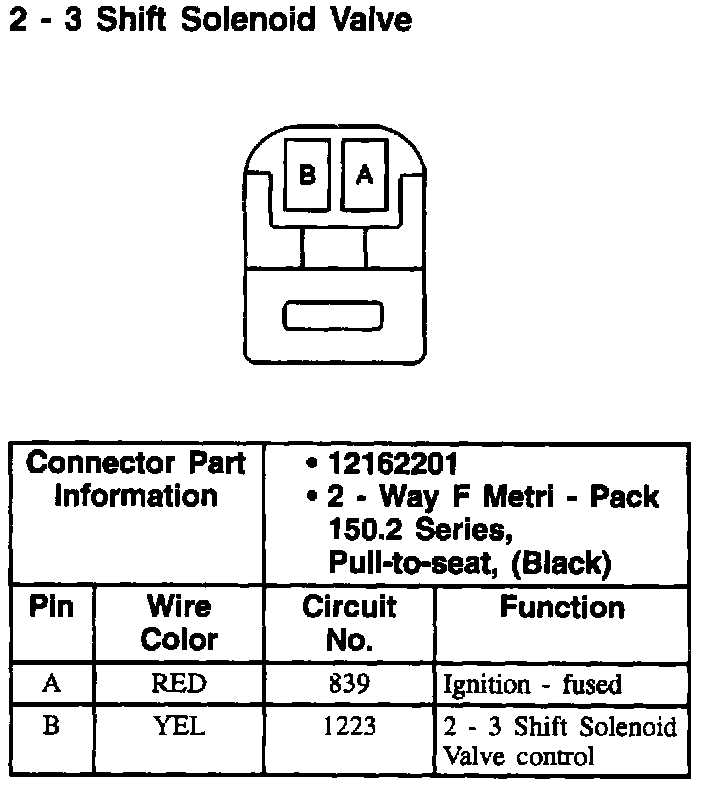

2-3 Shift Solenoid Valve:
