Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Shift Interlock, A/T
>>
System Diagram
System Diagram

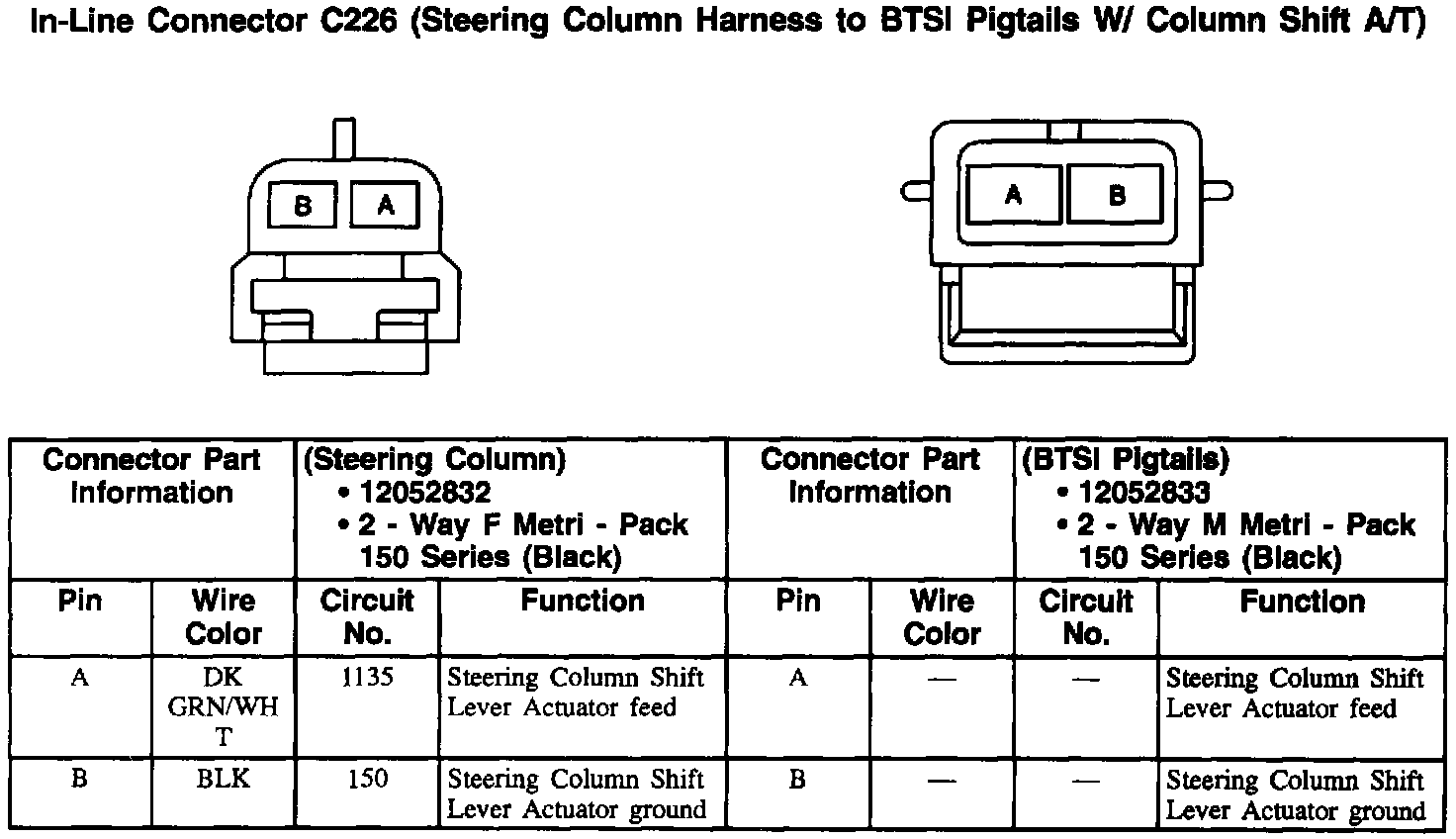

In-Line Connector: C226:
