S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Shift Interlock, A/T
>>
Shift Interlock Solenoid
Shift Interlock Solenoid

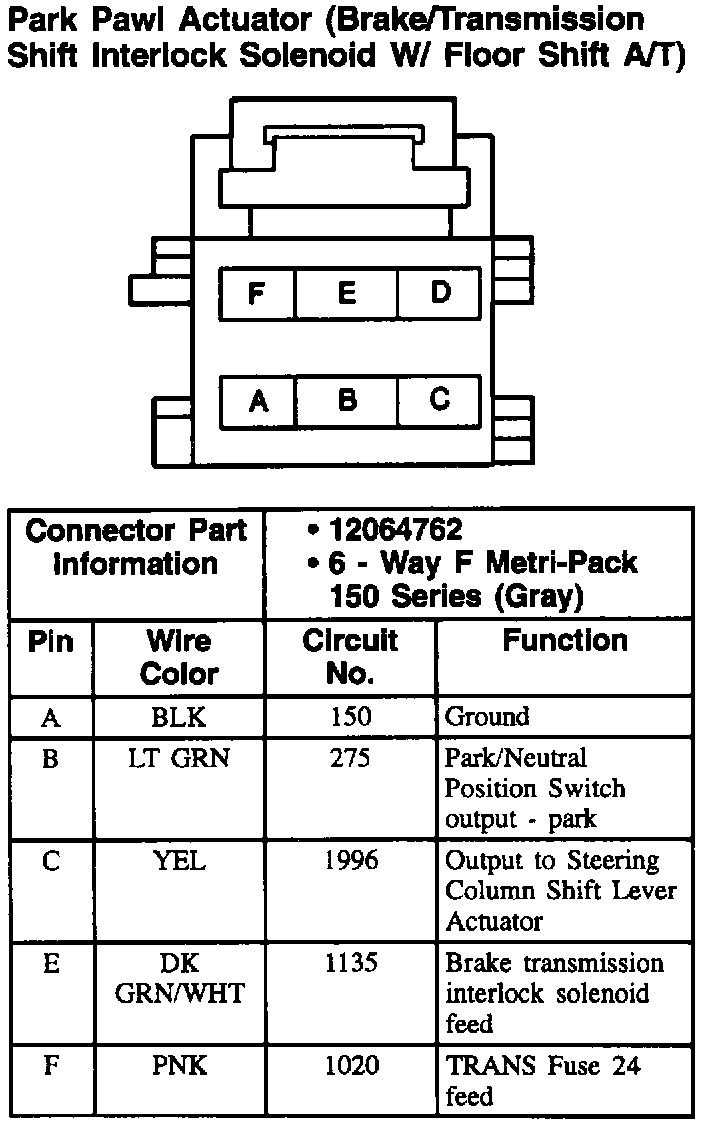

Park Pawl Actuator (BTSI W/ Floor Shift A/T):
