Home
>>
Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Turn Signal Lamp
Turn Signal Lamp

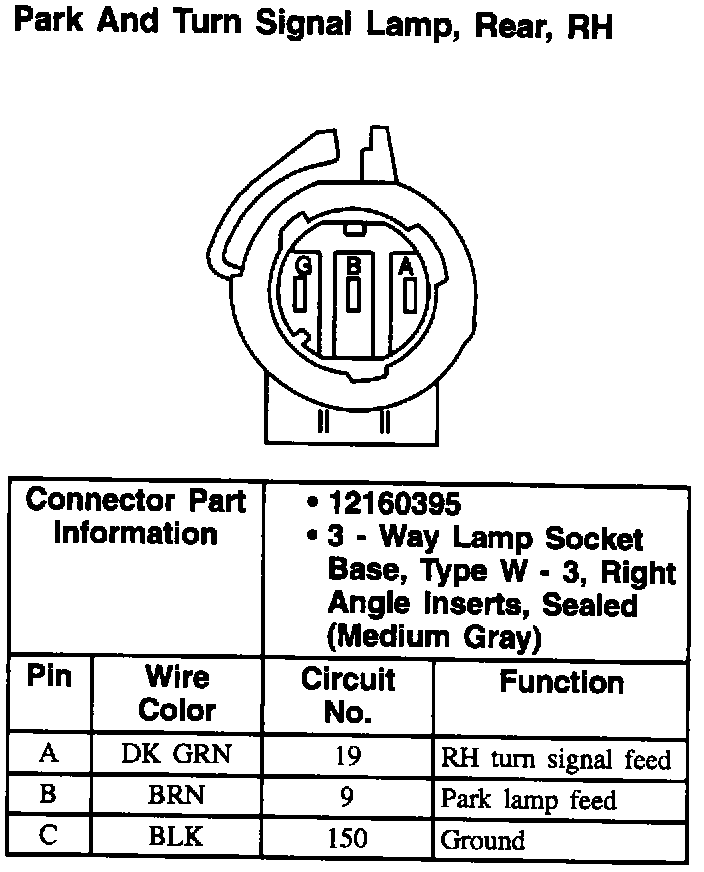

Park And Turn Signal Lamp, Rear, RH:

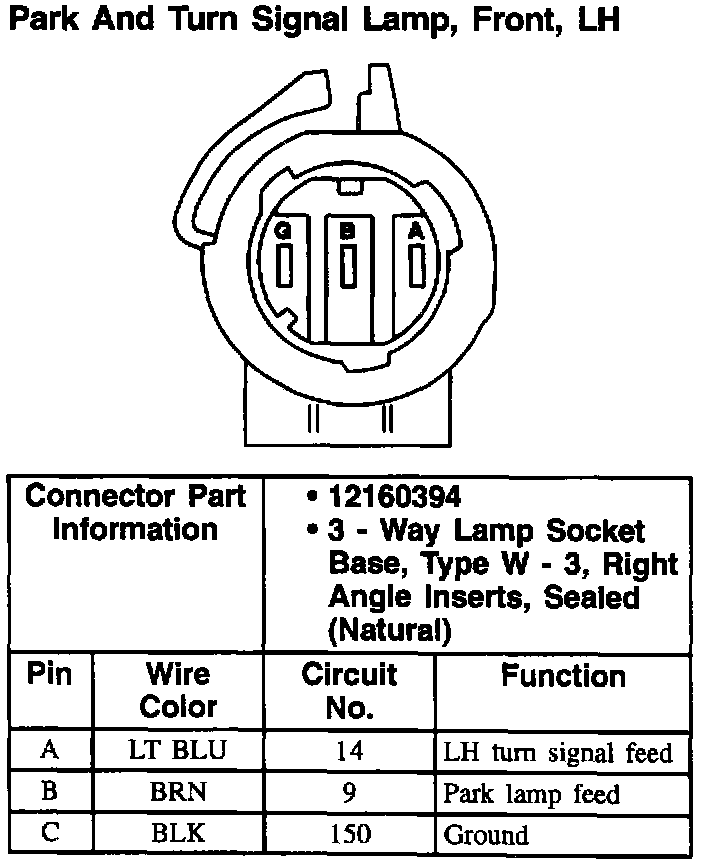

Park And Turn Signal Lamp, Front, LH:

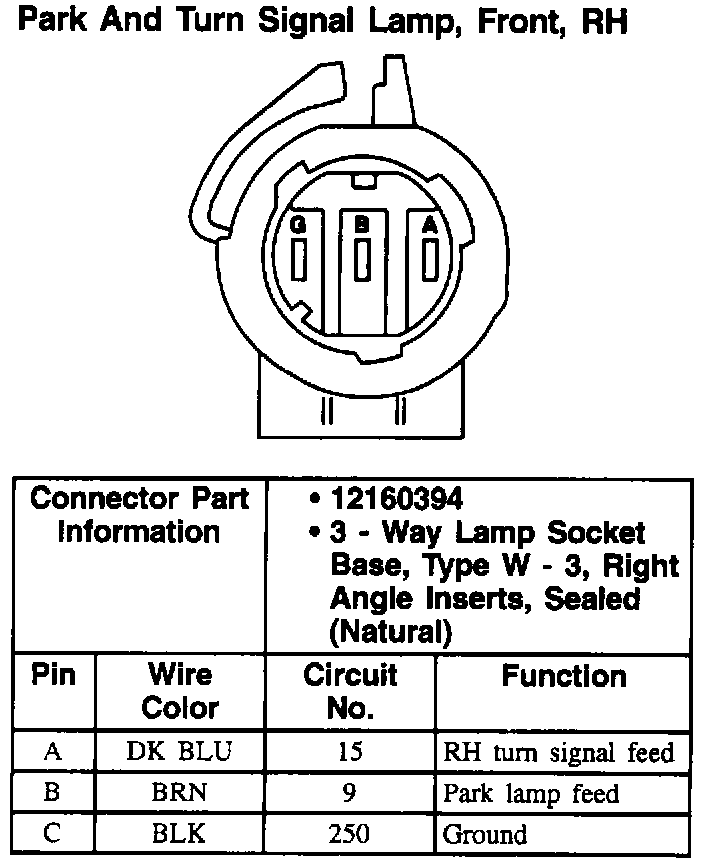

Park And Turn Signal Lamp, Front, RH:

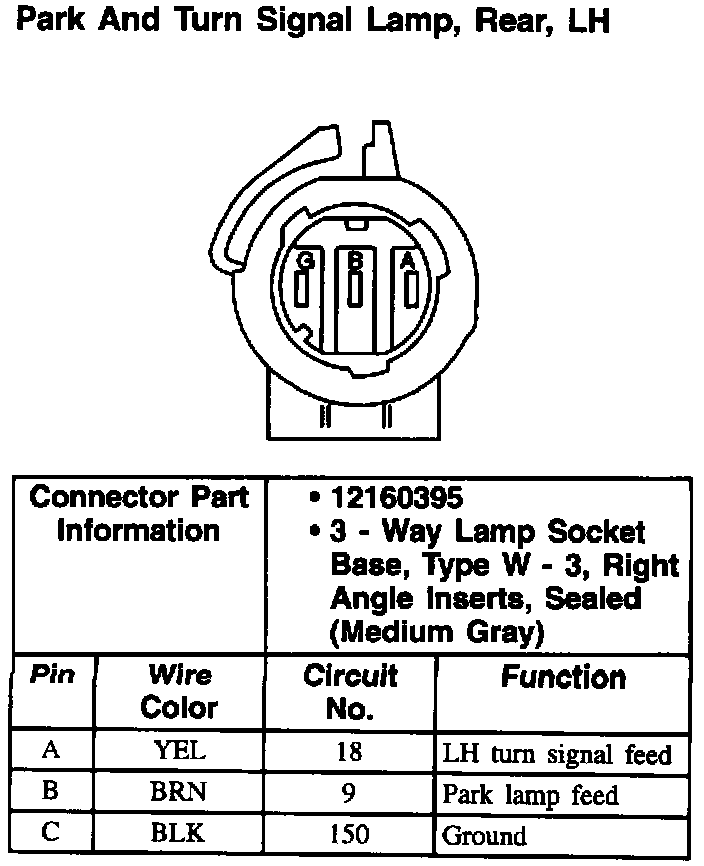

Park And Turn Signal Lamp, Rear, LH:
