License Plate Lamp

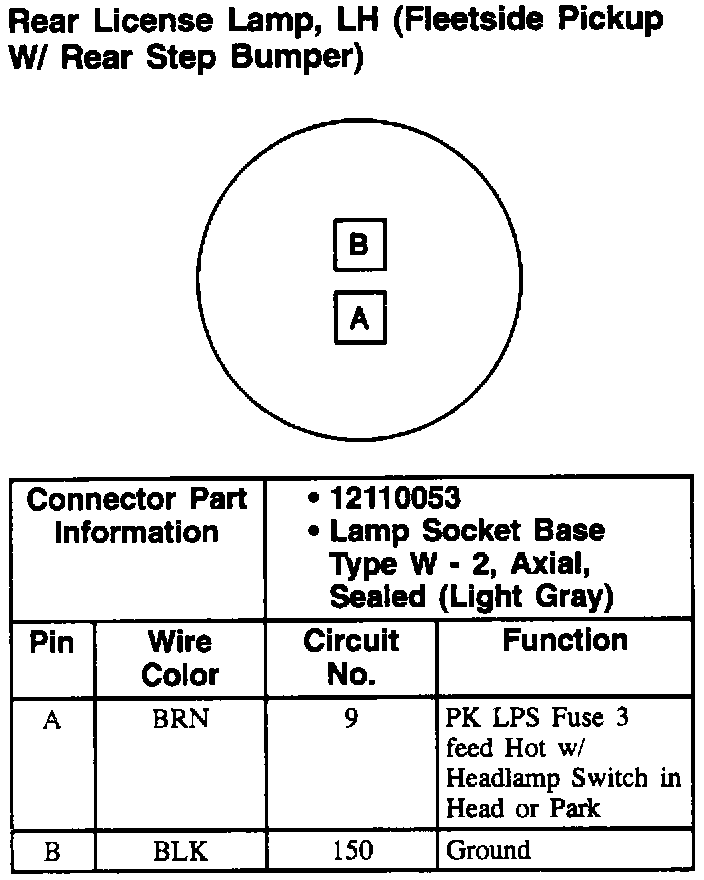

Rear License Lamp, LH (Fleetside W/ Rear Step Bumper):

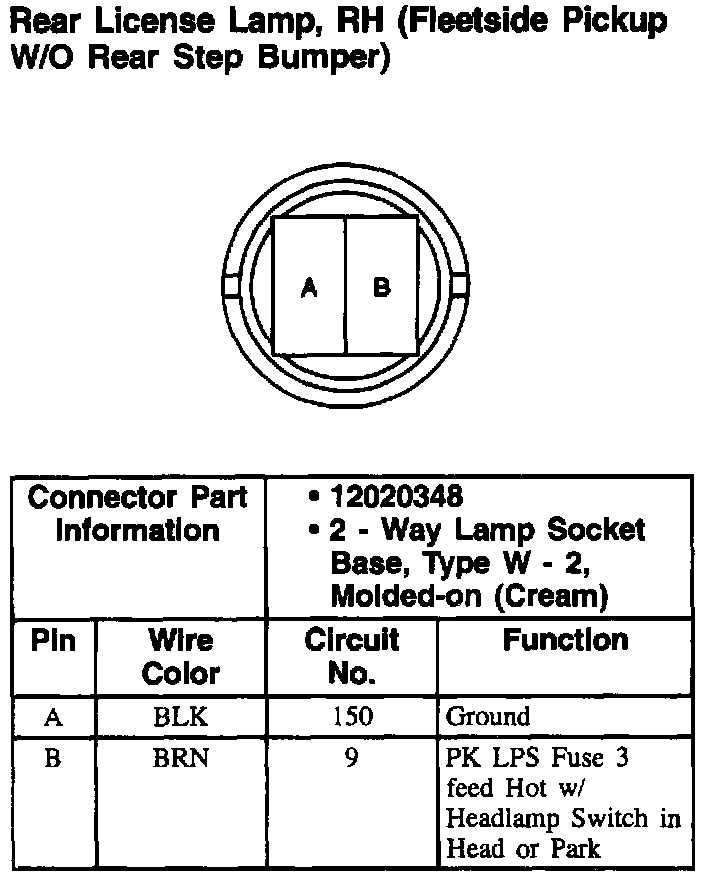

Rear License Lamp, RH (Fleetside W/O Rear Step Bumper):

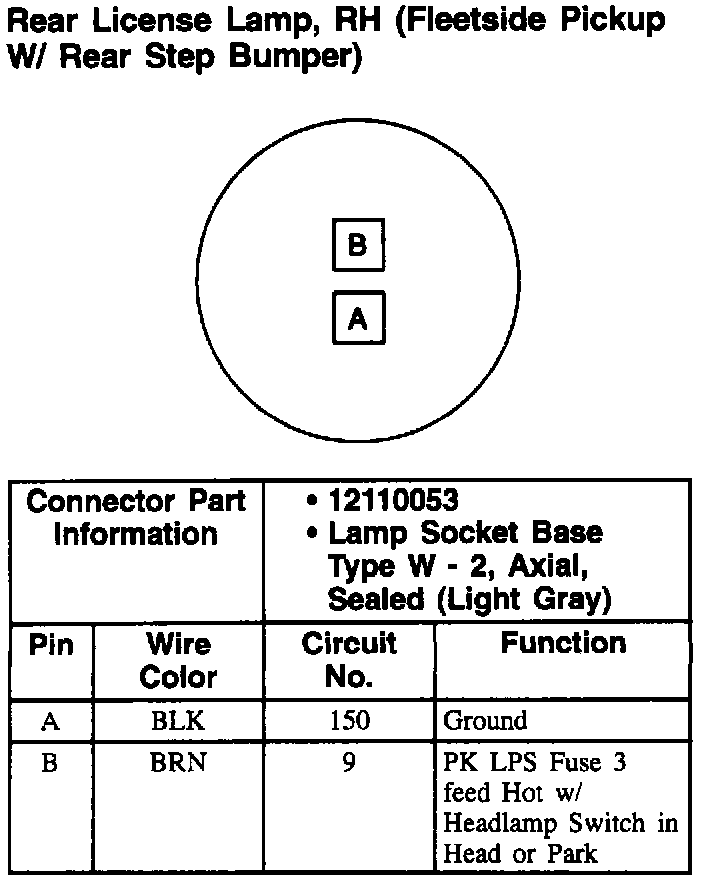

Rear License Lamp, RH (Fleetside W/ Rear Step Bumper):

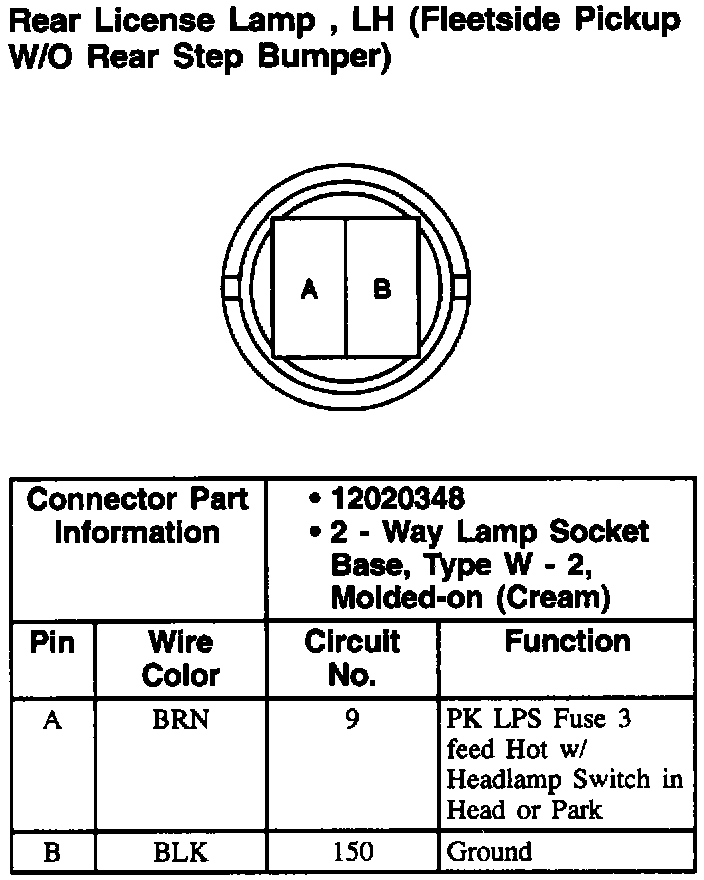

Rear License Lamp, LH (Fleetside W/O Rear Step Bumper):
