Heated Glass Element
Heated Glass Element

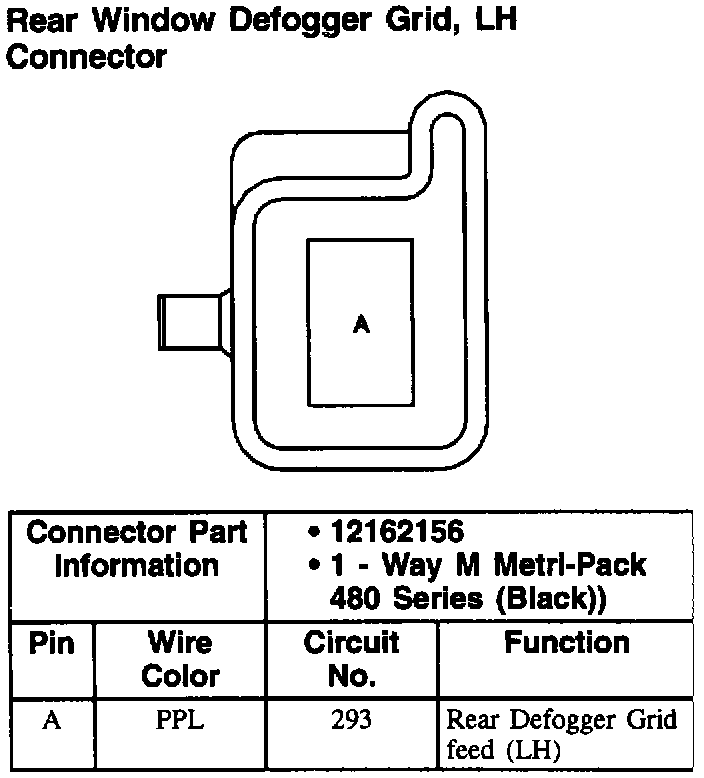

Rear Window Defogger Grid, LH Connector:

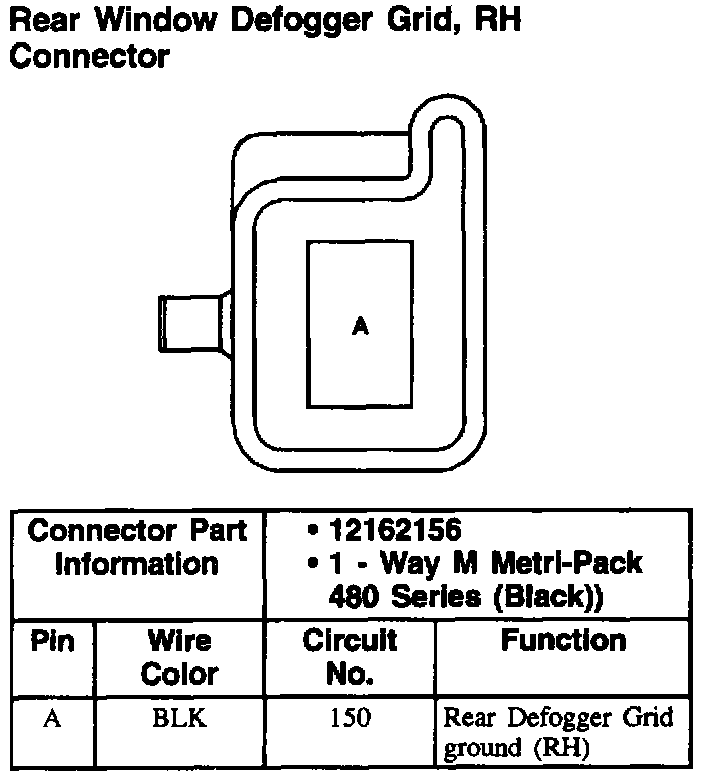

Rear Window Defogger Grid, RH Connector:

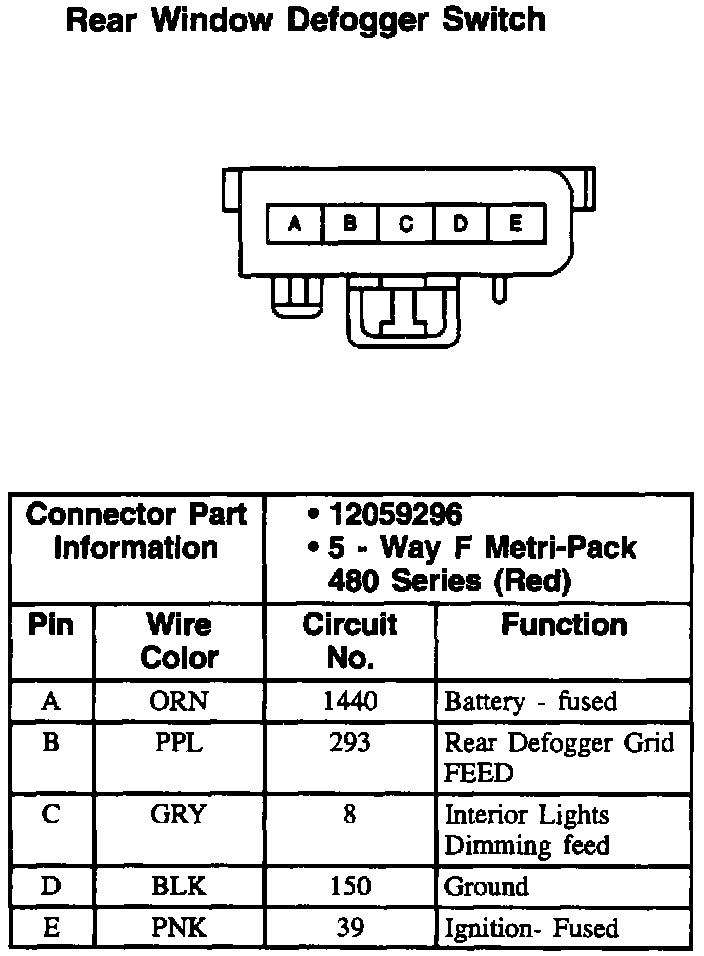

Rear Window Defogger Switch:
