Engine I/P Harness to I/P Extension Harness
>>
Pinout Description
Pinout Description

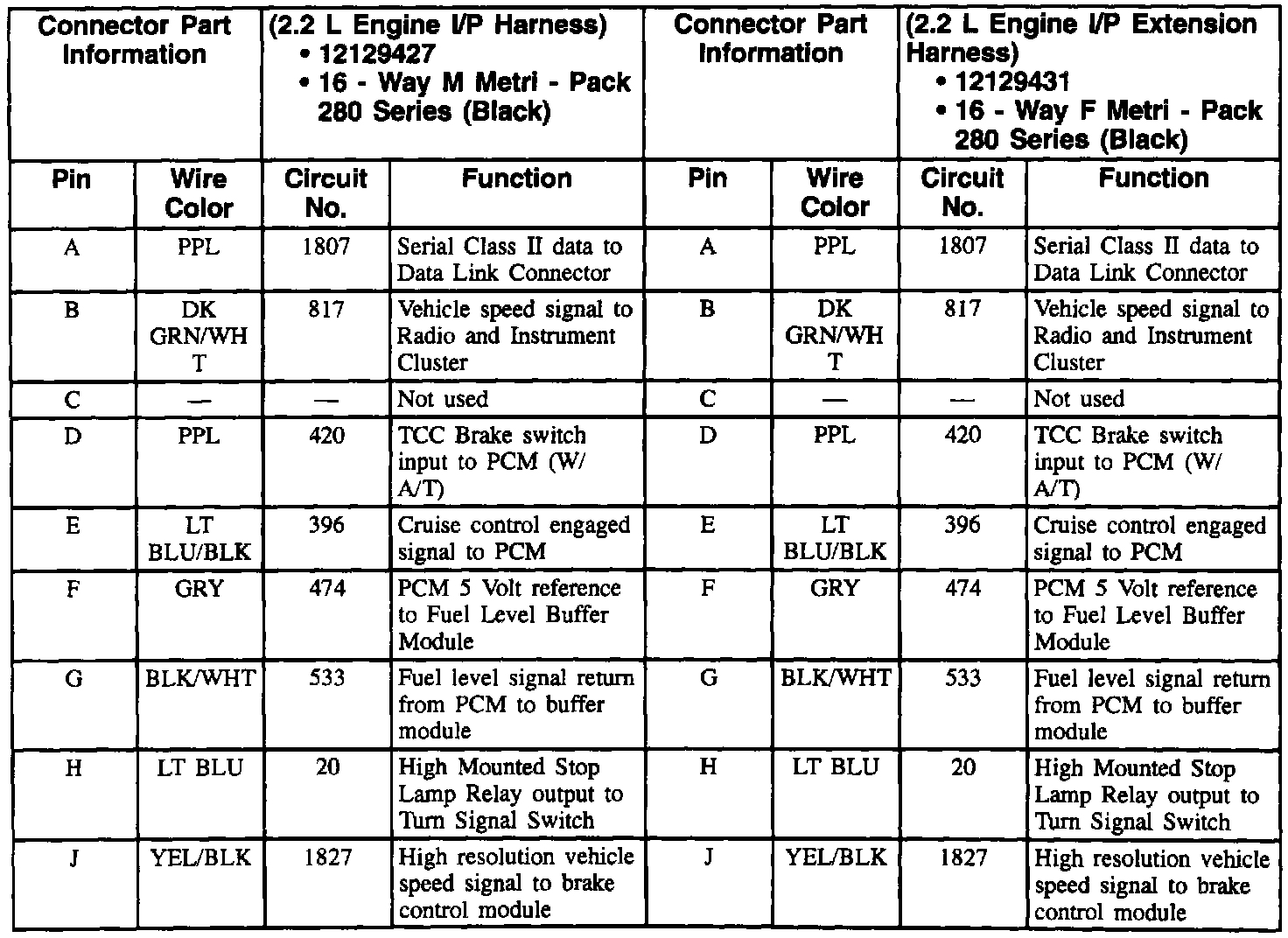

In-Line Connector: C201 (Part 1 Of 2):

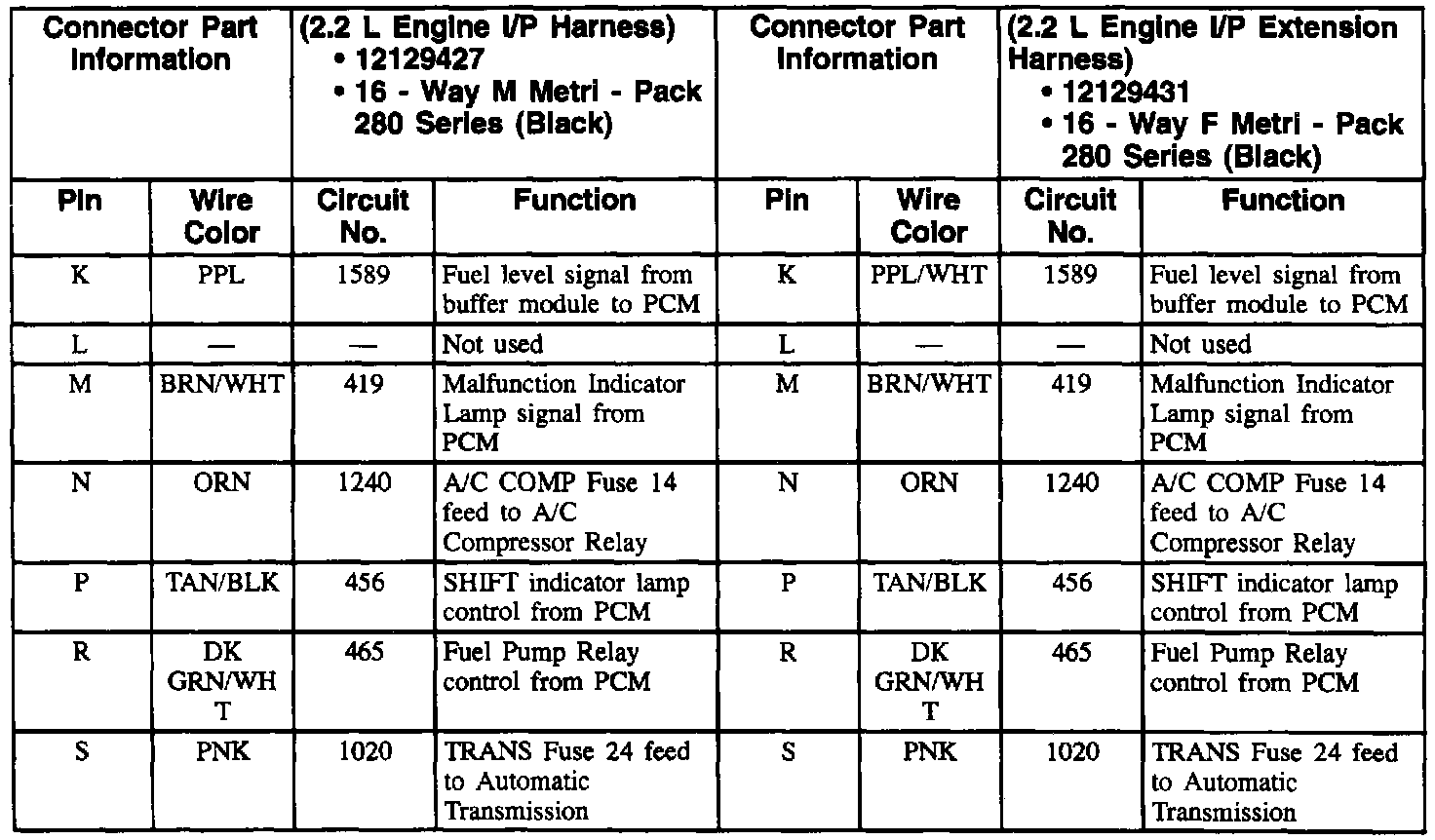

In-Line Connector: C201 (Part 2 Of 2):
