Home
>>
Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine
>>
System Diagram
>>
Engine Front of Dash to Chasis Harn CONN
Engine Front of Dash to Chasis Harn CONN

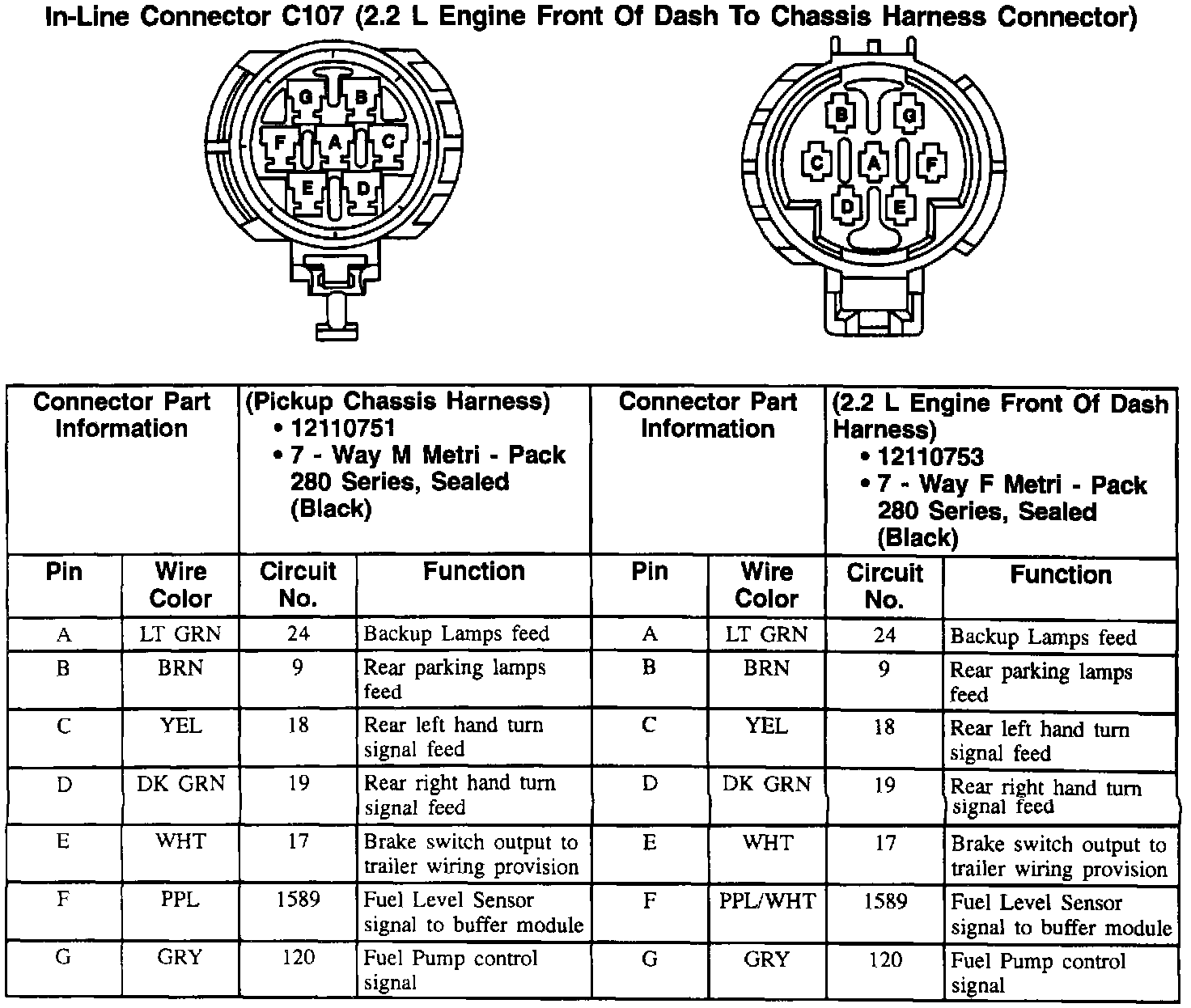

In-Line Connector: C107:
