Home
>>
Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body and Frame
>>
Trunk / Liftgate Switch
>>
Liftgate Liftglass Jamb Switch
Liftgate Liftglass Jamb Switch

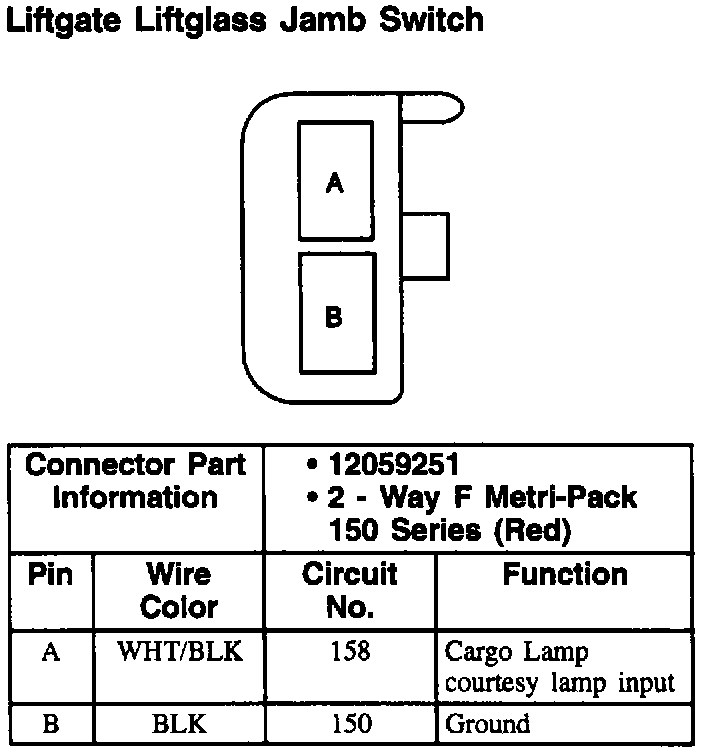

Liftgate Liftglass Jamb Switch:
