Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Hydraulic Control Assembly - Antilock Brakes
>>
C1
>>
W/ 4WD
W/ 4WD

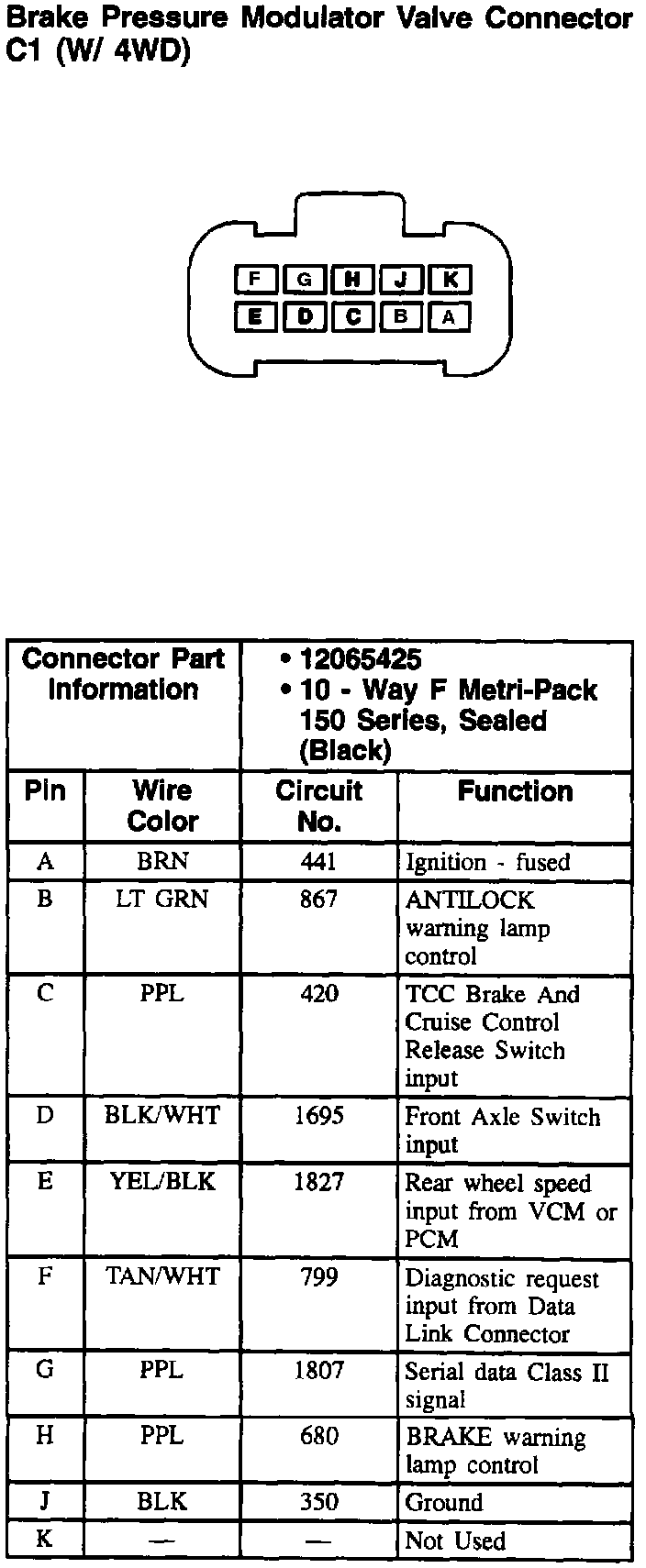

Brake Pressure Modulator Valve Connector: C1 (W/ 4WD):
