Parking Brake Lever: Service and Repair

NOTE: Clean and lubricate the parking brake assembly and cables with Lubricate GM P/N 1050109 or equivalent. Do not allow the lubricant to contact the brake drum or lining surfaces.

Parking Brake Lever And Shield:

REMOVE OR DISCONNECT
1. Release parking brake.
2. Left side sound insulator panel.
3. Loosen front cable at equalizer.

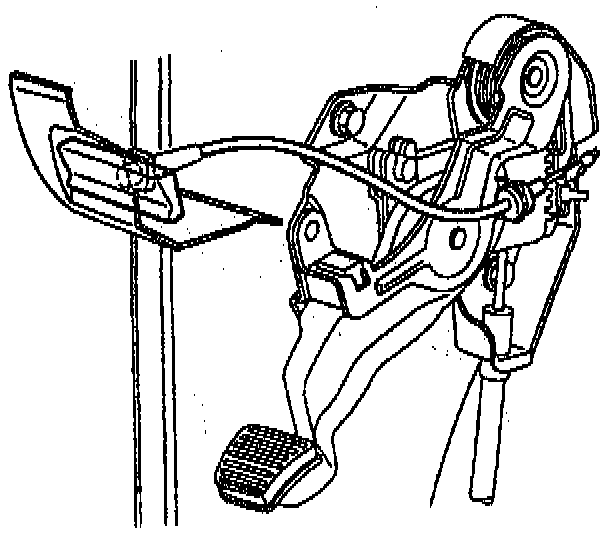

Parking Brake Release Handle:

4. Screw from parking brake switch.
5. Release handle.
6. Lever assembly.
7. Cable from lever.
8. Press in the retaining fingers.
9. Retainer from lever bracket. Press in the retaining fingers.

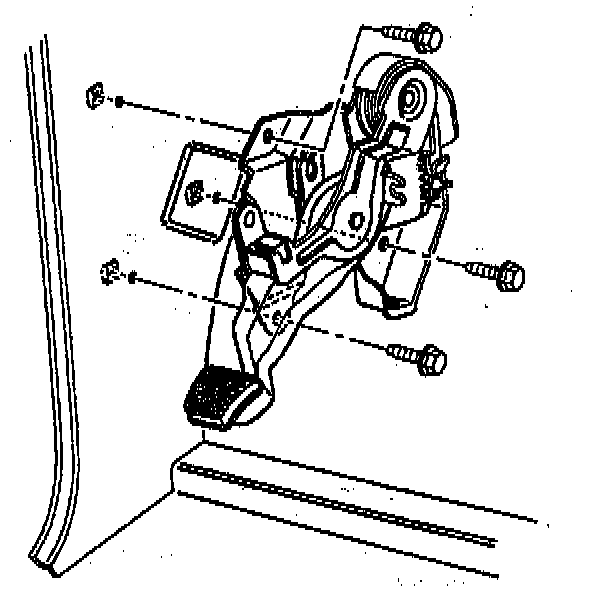

Front Cable And Lever:

INSTALL OR CONNECT
1. Cable to lever.
2. Lever assembly.
3. Bolts.
^ Tighten bolts to 25 Nm (18 ft. lbs.).
4. Retainer.
5. Release handle.
6. Screw to parking brake switch.
7. Left side sound insulator panel.
