Replacement

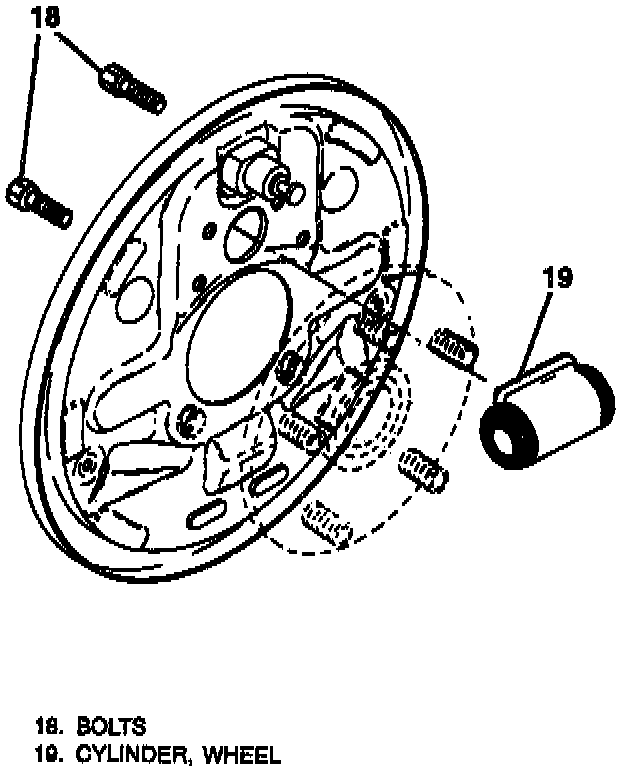

Removing The Wheel Cylinder:

REMOVE OR DISCONNECT
1. Brake shoes.
2. Brake pipe.
3. Bolts (18).
4. Wheel cylinder (19).

INSTALL OR CONNECT
1. Wheel cylinder (19).
2. Bolts (18).
^ Tighten bolts (18) to 18 Nm (13 ft. lbs.).
3. Brake pipe.
^ Tighten pipe fitting to 18 Nm (13 ft. lbs.).
4. Brake shoes.
5. Bleed brake system.
