Removal and Installation

NOTE: Rear brake rotor can be removed without removal of caliper from anchor bracket.

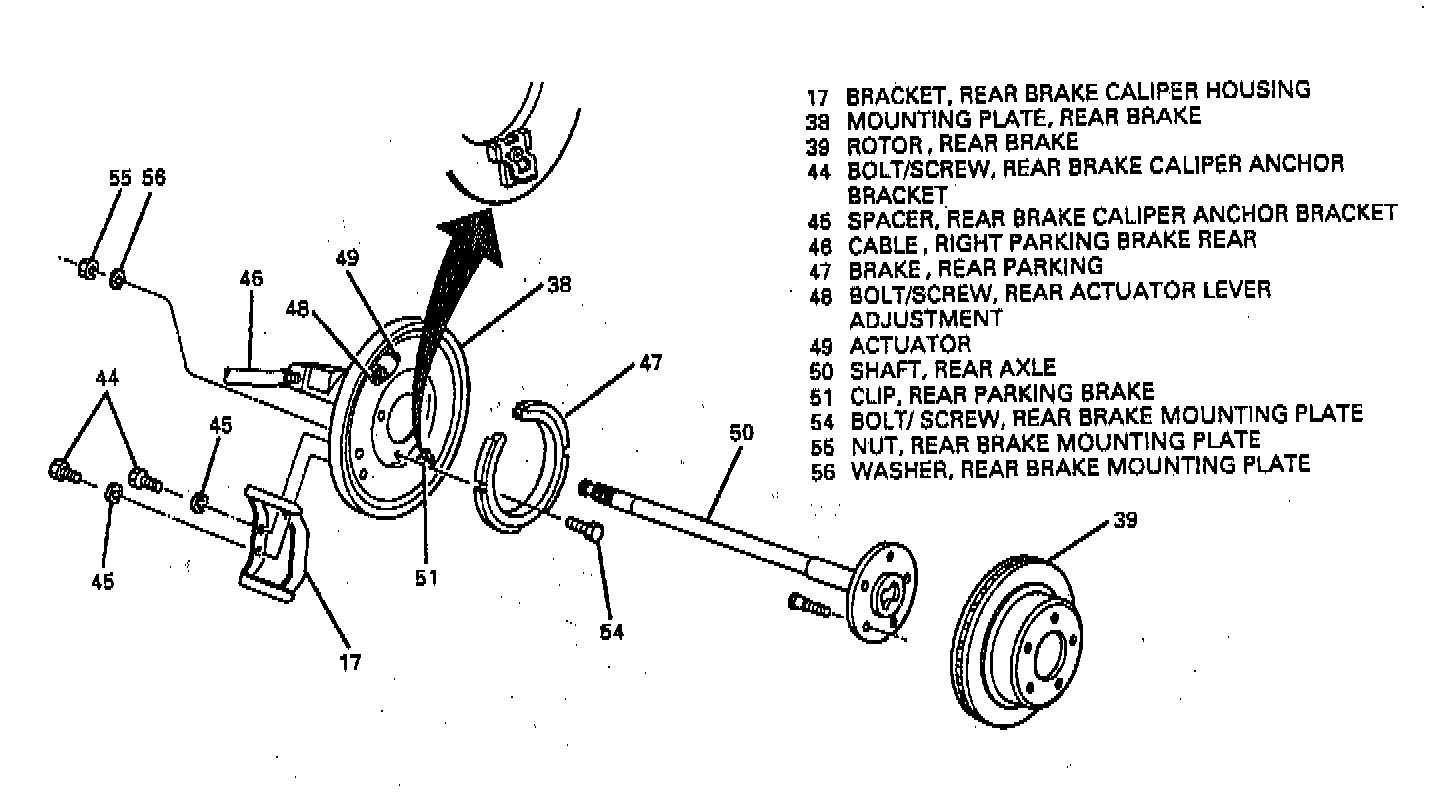

Rear Brake Rotor, Caliper Anchor Bracket, And Mounting Plate:

REMOVE OR DISCONNECT
1. Raise and suitably support vehicle.
2. Tire and wheel.
3. Anchor bracket bolts/screws.
4. Anchor bracket with assembled caliper from mounting plate and suspend them from rear suspension out of the way using locally fabricated wire hook.
5. Rotor.
^ Slowly turn rotor while pulling away from axle.

NOTE: Whenever the rotor has been separated from the axle flange, clean any rust or foreign material from the mating surface of the axle flange and brake rotor. Failure to do this may result in increased lateral runout of the rotor and brake pulsation.

INSTALL OR CONNECT
1. Rotor.
2. Anchor bracket with assembled caliper to mounting plate.
3. Anchor bracket bolts/screws.
^ Tighten anchor bracket bolts/screws to 70 Nm (52 ft. lbs.).
4. Tire and wheel.
5. Lower vehicle.
