Home
>>
Chevy Truck
>>
1997
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Track
>>
Diagrams
>>
Connector Views
Connector Views

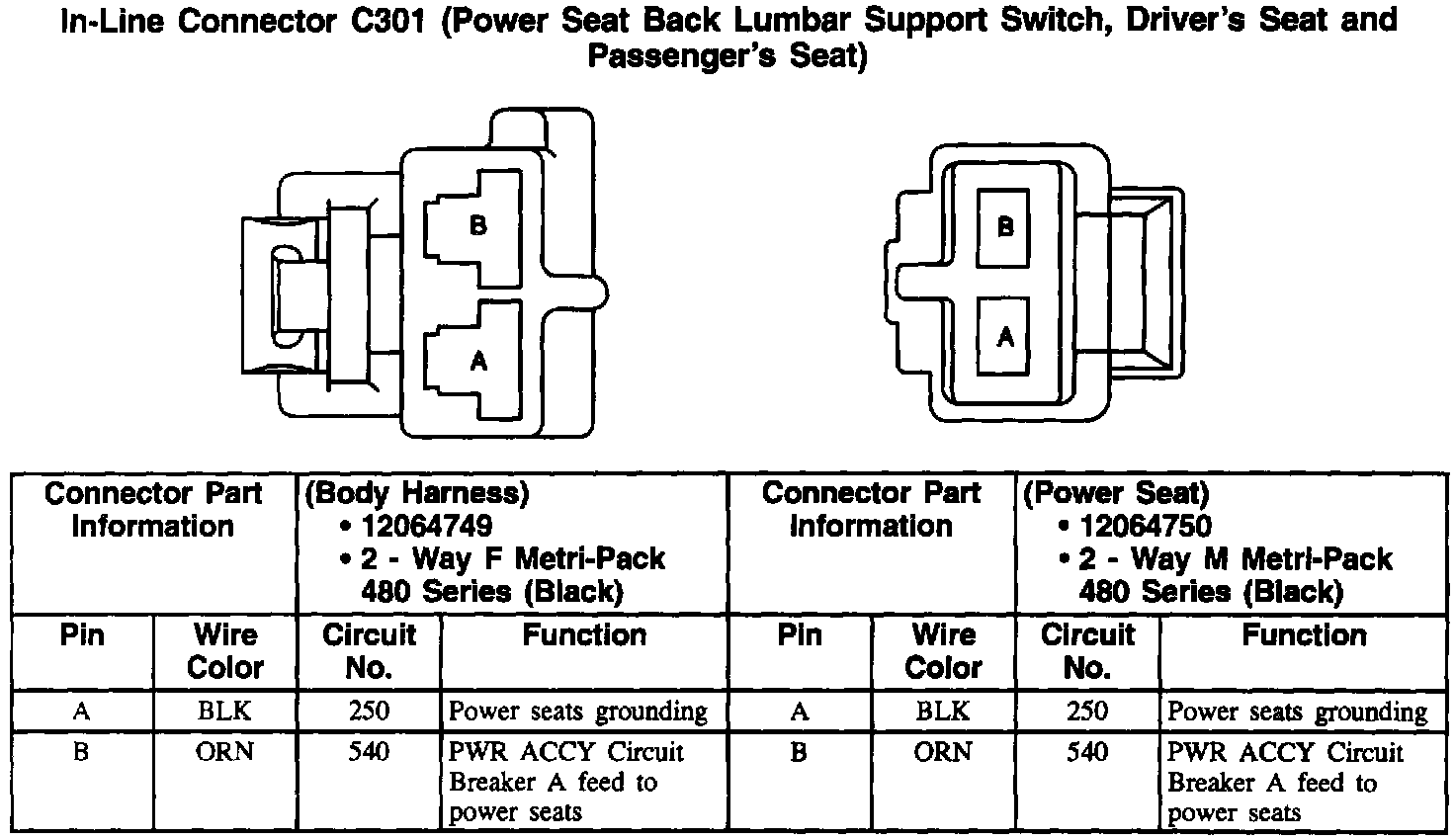

In-Line Connector: C301 (Driver's Seat And Passenger's Seat):
