Universal Transmitter Module Replacement

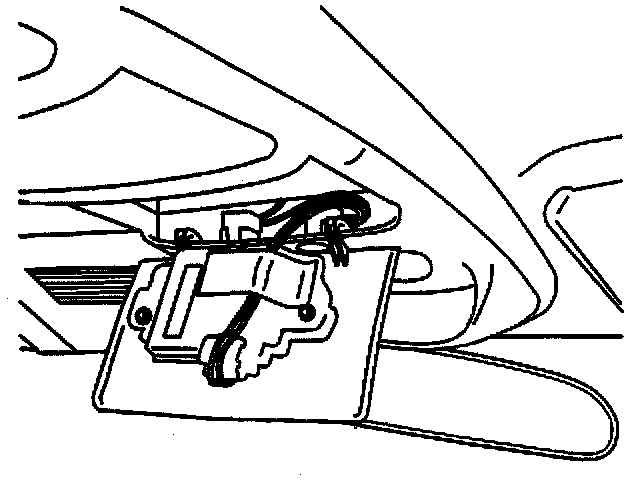

Universal Transmitter Module:

REMOVE OR DISCONNECT
1. Open the universal transmitter compartment door.
^ Use a flat-bladed tool at the rear of the door to carefully pry the door open.
2. Electrical connector and tape.
3. Screws that retain the universal transmitter module to the door.
4. Universal transmitter module from the door.

Universal Transmitter Module:

INSTALL OR CONNECT
1. Universal transmitter module from the door.
2. Screws that retain the universal transmitter module to the door.
Tighten
Screws to 1.9 Nm (17 lb in).
3. Electrical connector and tape.
4. Close the universal transmitter compartment door.
