P0560

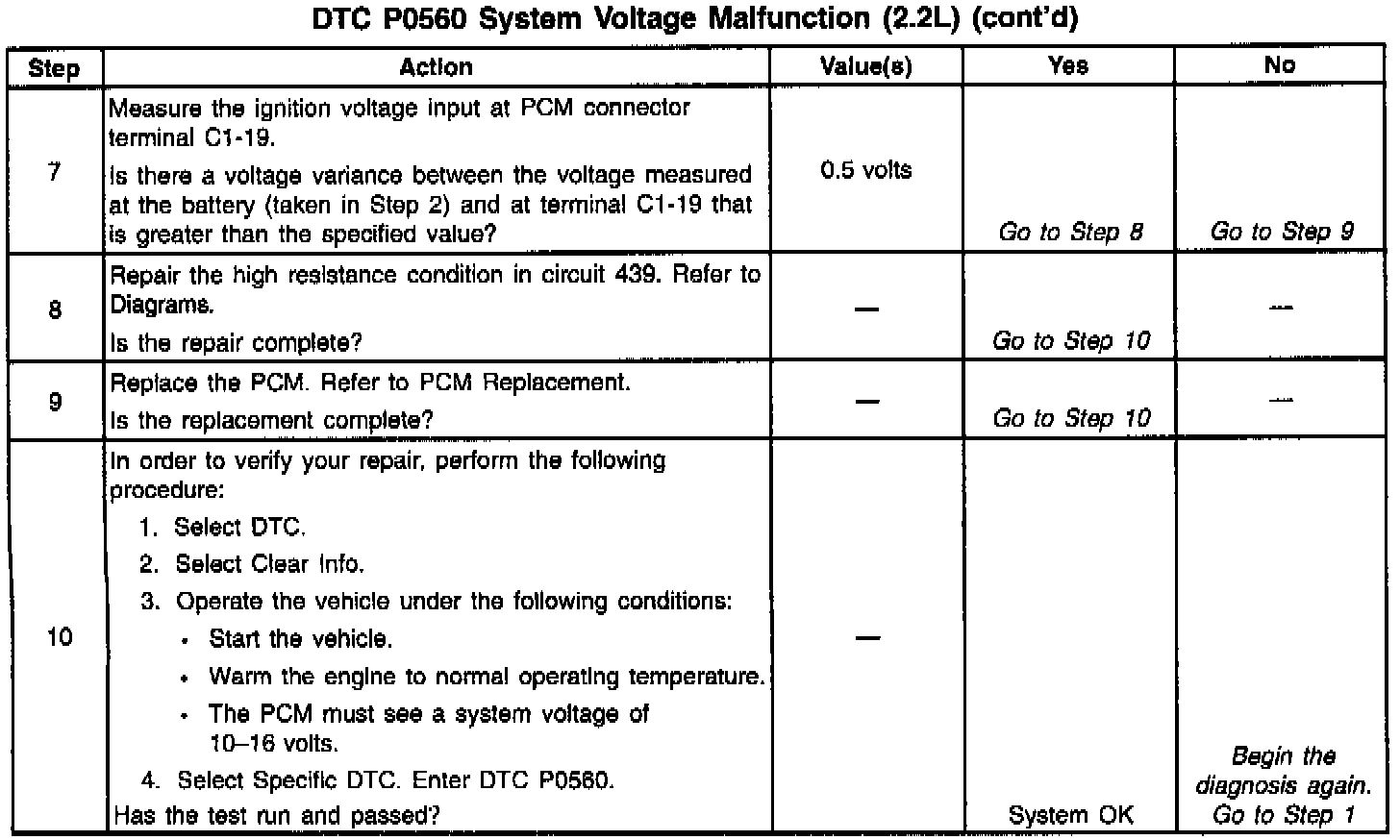

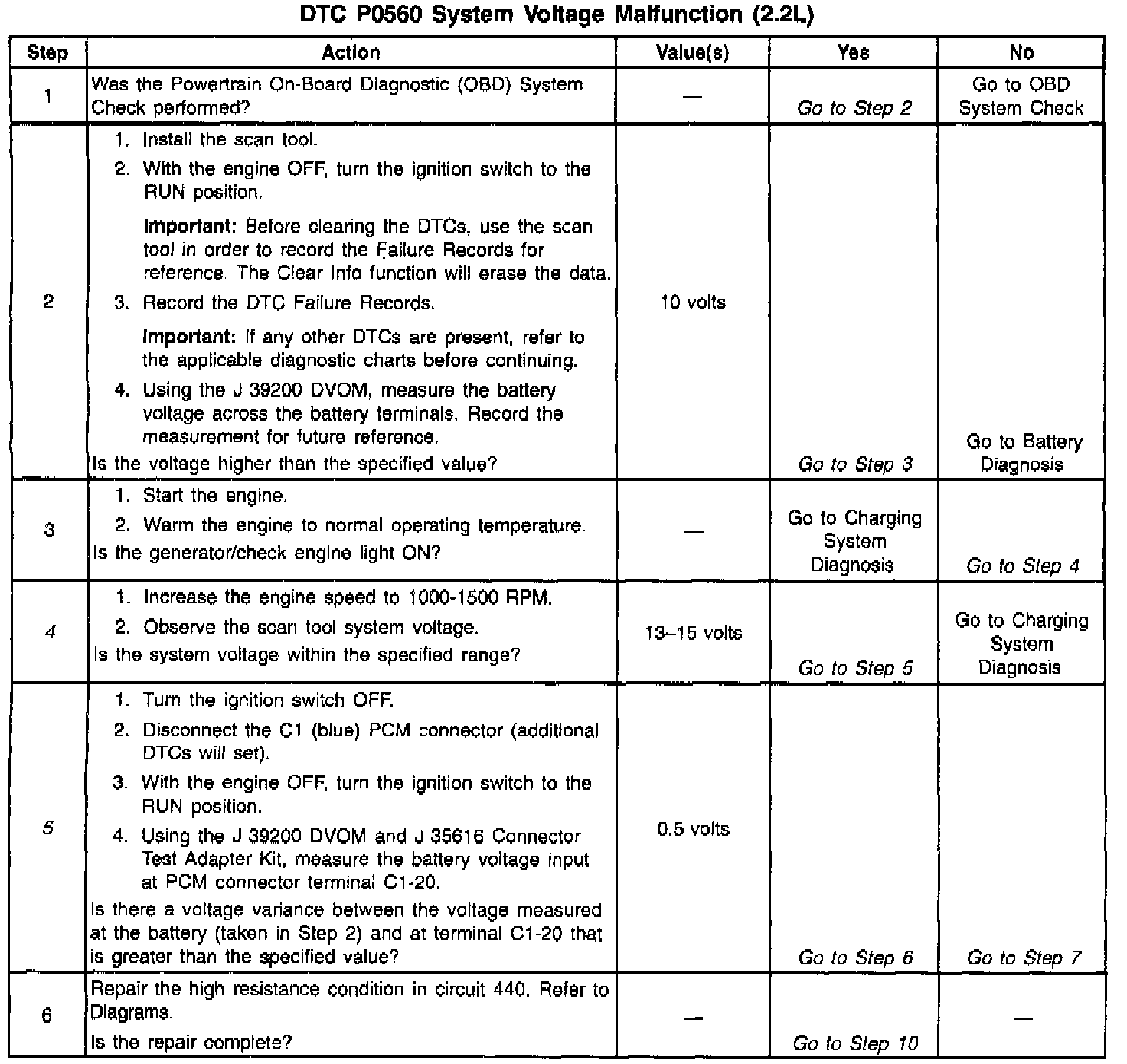

Diagnostic Chart:

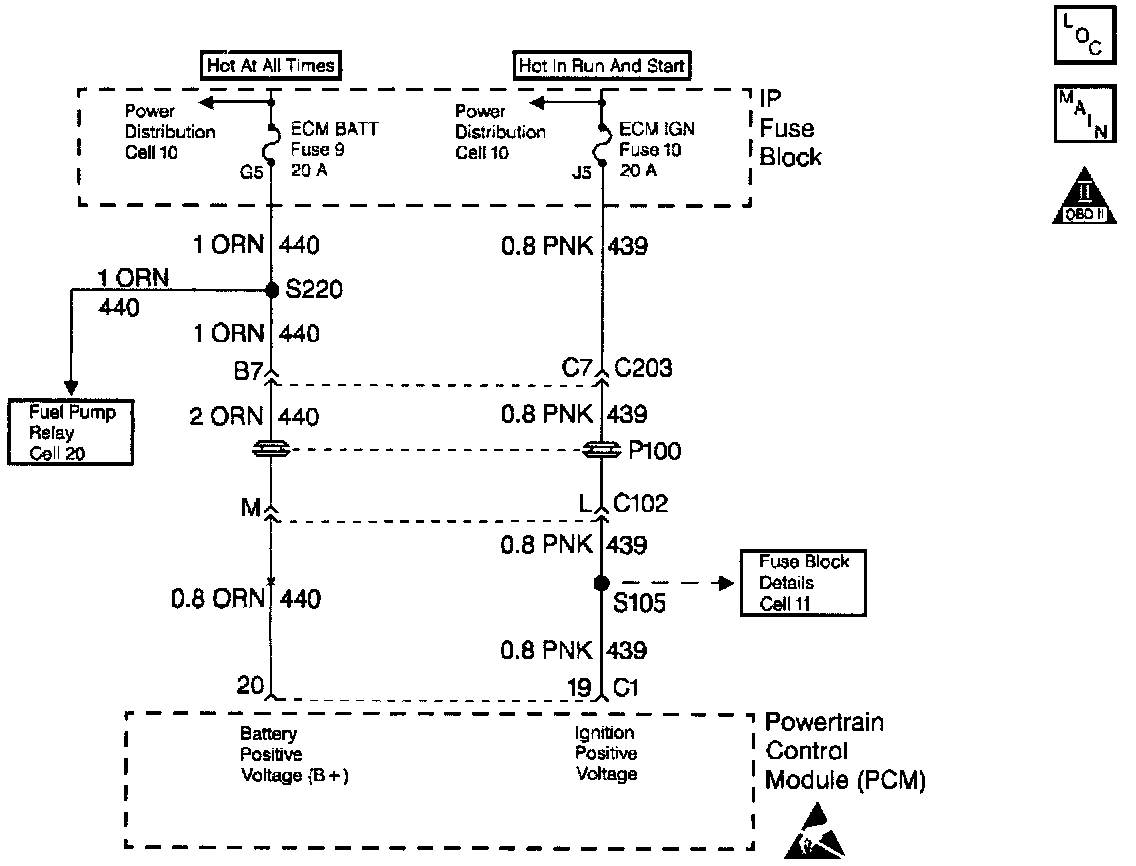

Wiring Diagram:

Circuit Description
Circuit 439 is the ignition voltage feed for the PCM. Circuit 440 is the battery voltage feed for the PCM. When the PCM detects a low voltage or a high voltage, then DTC P0560 sets. DTC P0560 is a type D DTC.

Conditions for Setting the DTC

The system voltage is low:

^ The engine speed is greater than 800 RPM.
^ The system voltage is less than 10 volts.
^ All conditions met for 2 seconds.

The system voltage is high:

^ The transmission fluid temperature is greater than 0°C (32°F).
^ The system voltage is greater than 16 volts.
^ All conditions met for 2 seconds.

Action Taken When the DTC Sets

^ All transmission output devices are OFF.
^ The PCM does not illuminate the Malfunction Indicator Lamp (MIL).

Conditions for Clearing the DTC

^ A scan tool can clear the DTC from the PCM history. The PCM clears the DTC from the PCM history if the vehicle completes 40 warm-up cycles without a failure reported.
^ The PCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the PCM.

Diagnostic Aids

^ Inspect the wiring for poor electrical connections at the PCM. Look for the following conditions:

- A bent terminal
- A backed out terminal
- A damaged terminal
- Poor terminal tension
- A chafed wire
- A broken wire inside the insulation

^ When diagnosing for an intermittent short or open condition, massage the wiring harness while watching the test equipment for a change.
^ Charging the battery with a battery charger may set DTCs. Jumpstarting an engine may set DTCs.
^ If DTCs set when you operate an accessory, inspect the applicable wiring for faulty connections. Inspect the wiring for excessive current draw.
^ Inspect the following items for faulty connections:

- The starter solenoid
- The fusible link
- The generator terminals

^ Inspect the belts for excessive wear. Inspect the belts for proper tension.

Test Description
The numbers below refer to the step numbers on the diagnostic chart.

4. This step tests the charging system voltage.
5. This step tests battery voltage input at the PCM.
7. This step tests ignition voltage input at the PCM.
