Expansion (Orifice) Tube

Evaporator Tube:

Expansion (Orifice) Tube

Tool Required:
J 26549-E Orifice Tube Remover and Installer or Equivalent

Remove or Disconnect
1. Recover refrigerant.
2. Grille.
3. Evaporator tube from condenser. (See the bottom of this article).
4. O-ring seal.
- Cap or plug the open line.
5. Expansion (orifice) tube from the condenser outlet pipe, using J 26549-E or equivalent.
- In the event that difficulty is encountered during the removal of a restricted or plugged expansion (orifice) tube, the following procedure is recommended:
A Remove as much of any impacted residue as possible.
B. Carefully apply heat with heat gun (hair drier, epoxy drier or equivalent) approximately 7 mm (1/4 inch) from dimples on inlet pipe. Do not overheat pipe.
C. While applying heat, use expansion tube removal tools J 26549-E or equivalent to grip the expansion (orifice) tube. Use a turning motion along with a push-pull motion to loosen the impacted expansion (orifice) tube and remove it.


Install or Connect
1. Expansion tube into condenser outlet pipe, using J 26549-E or equivalent.
2. New O-ring seal.
A. Coat O-ring seal with 525 viscosity refrigerant oil.
B. Insert the short screen end of the new orifice into the evaporator tube.
3. Evaporator tube to condenser. (See the bottom of this article).
4. Grille.
5. Charge system.
6. Check system for leaks.

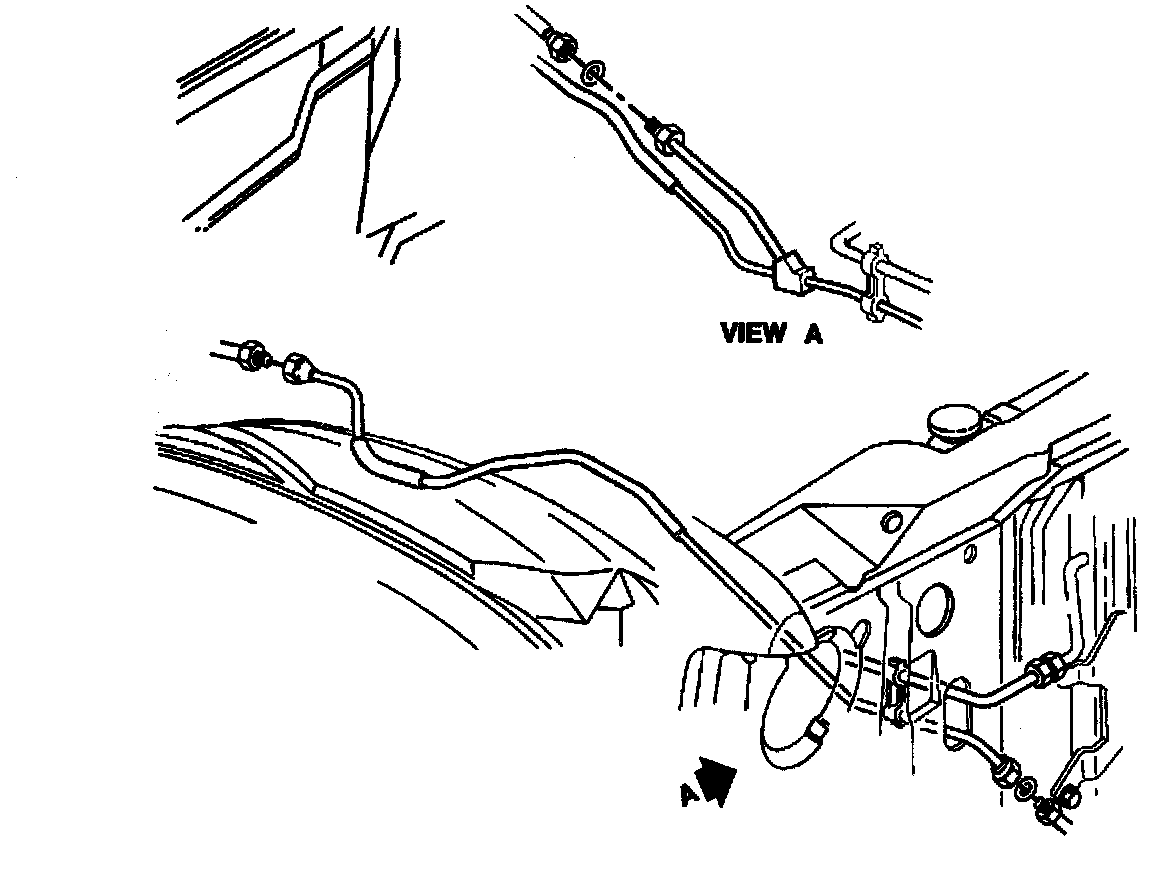

Evaporator Tube

Evaporator Tube:

Remove or Disconnect

1. Negative battery cable.
2. Recover refrigerant.
3. Auxiliary heater pipe, if equipped.
4. Coolant recovery reservoir.
5. Evaporator tube from evaporator.
6. O-ring seal.
7. Evaporator tube from condenser.
8. O-ring seal.
9. Evaporator tube from clip.

Install or Connect

1. Evaporator tube into clip.
2. New O-ring seal. Coat O-ring with 525 viscosity refrigerant oil.
3. Evaporator tube to condenser. Tighten evaporator tube to 24 Nm (18 ft. lbs.).
4. New O-ring seal. Coat O-ring with 525 viscosity refrigerant oil.
5. Evaporator tube to evaporator. Tighten evaporator tube to 24 Nm (18 ft. lbs.).
6. Coolant recovery reservoir.
7. Auxiliary heater pipe if equipped.
8. Negative battery cable.
9. Charge system.
10. Check system for leaks.
