Rear

AUXILLARY HEATER CORE

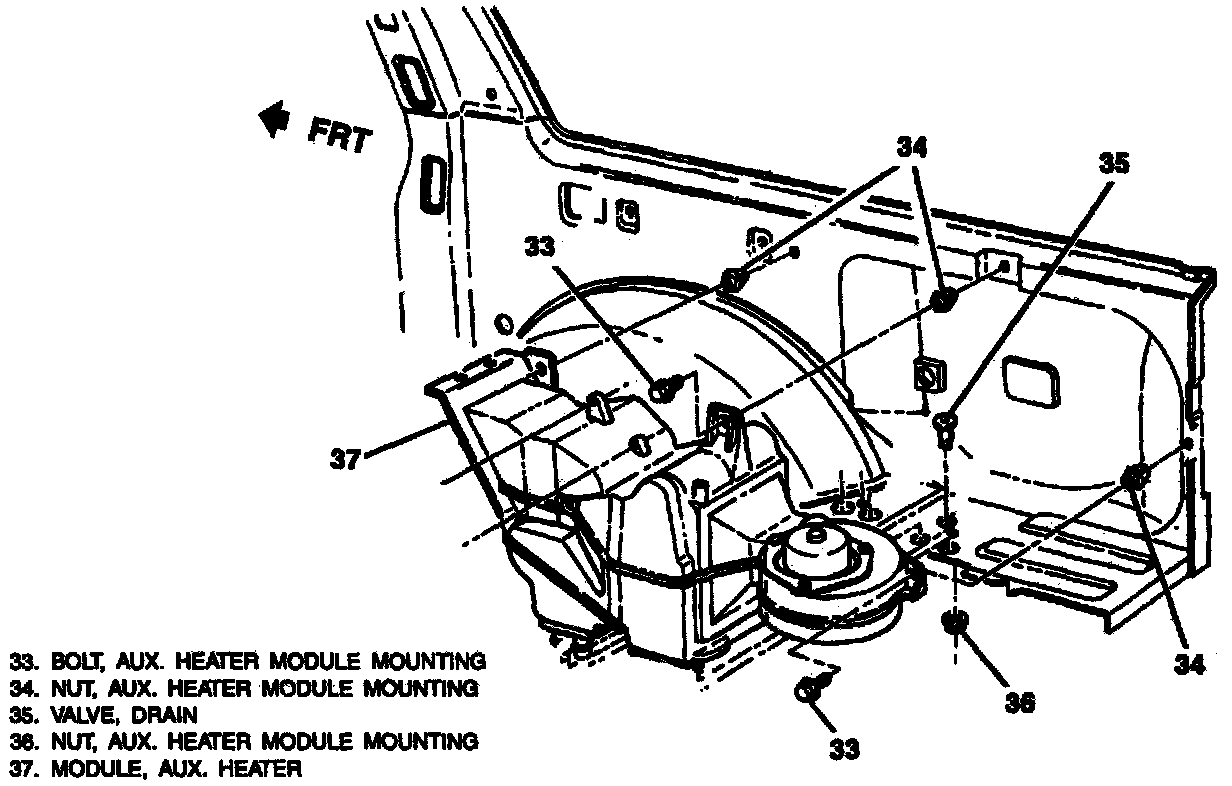

Auxiliary Heater Module:

Remove or Disconnect

1. Engine coolant.
2. Rear quarter interior trim, as necessary.
3. Right rear quarter trim panel.
4. Right rear wheelhouse.
5. Auxiliary heater hoses from heater core.
6. Electrical connectors, as necessary.
7. Drain valve.
8. Bolts.
9. Nuts.
10. Heater module.
11. Blower motor, if necessary.
12. Heater case cover.
13. Heater core.

Auxiliary Heater Module:

Install or Connect

1. Heater core.
2. Heater case cover.
3. Blower motor, if necessary.
4. Heater module.
5. Nuts.
6. Bolts.

Tighten
- Nuts to 10 Nm (89 lb in).
- Bolts to 1.5 Nm (13 lb in).

7. Drain valve.
8. Electrical connectors, as necessary.
9. Auxiliary heater hoses to heater core.
10. Right rear wheelhouse.
11. Right rear quarter trim panel.
12. Engine coolant.
- Check the system for leaks.
