Home >> Chevy Truck >> 1997 >> K 2500 Suburban 4WD V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Vehicle Control Module (VCM)

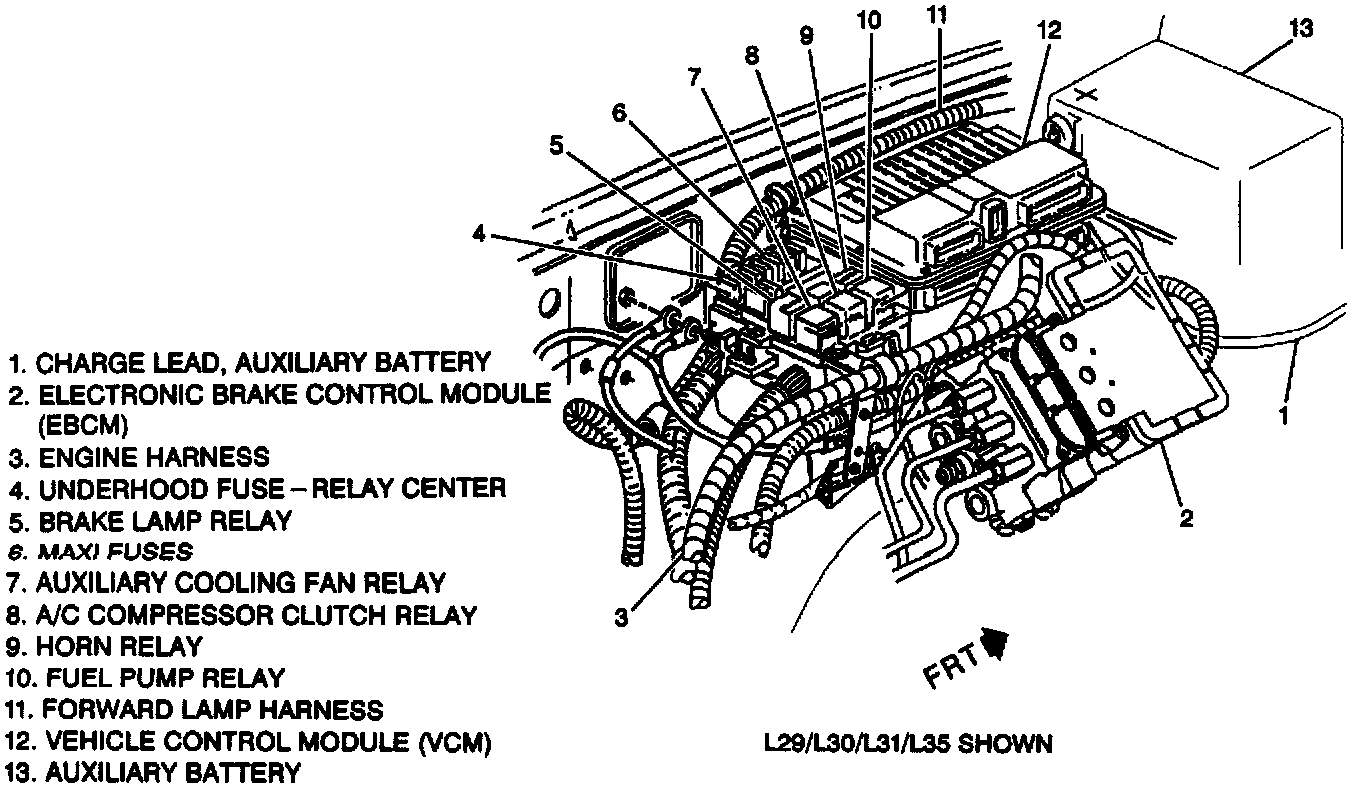

Vehicle Control Module (VCM)

Underhood Fuse-Relay Center:
