Home >> Chevy Truck >> 1997 >> K 2500 Suburban 4WD V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Auxiliary Heater and A/C Logic Module

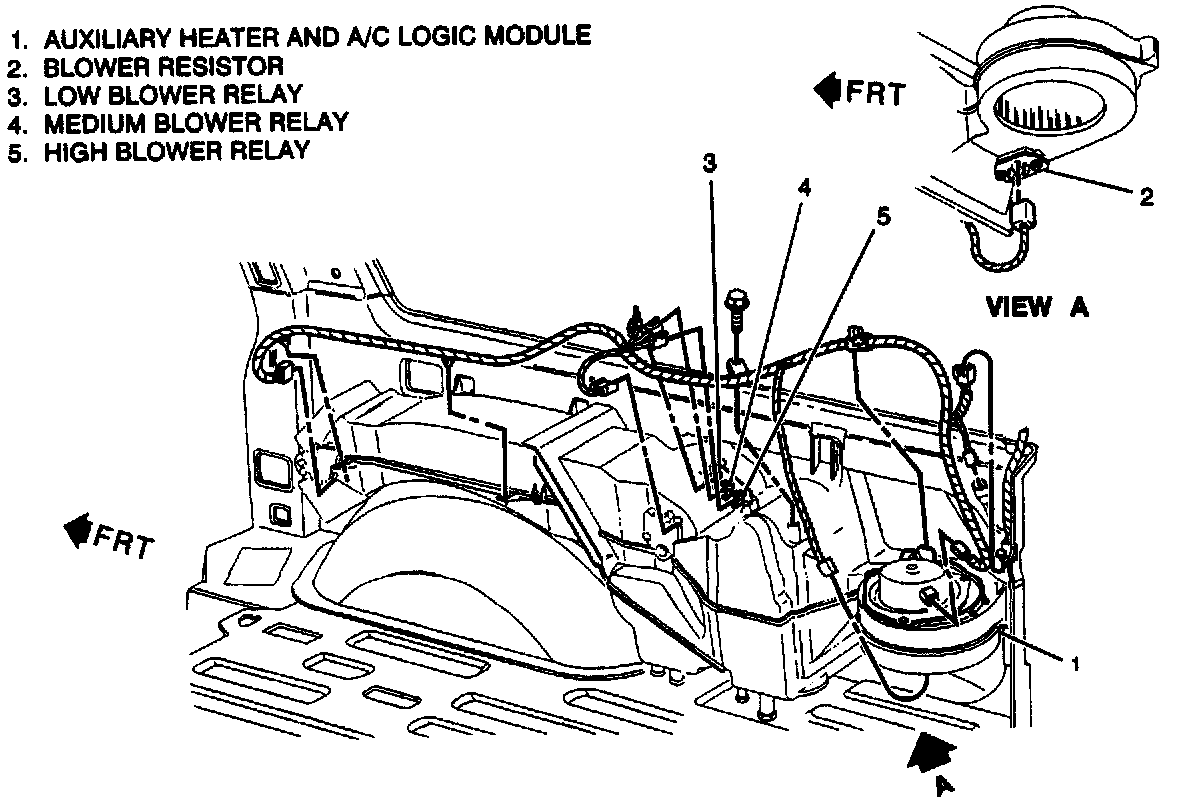

Auxiliary Heater and A/C Logic Module

Auxiliary Heater And Air Conditioning Wiring, Rear:
