Chevy Truck
>>
1997
>>
G 3500 1 Ton Van V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Fuel Level Sensor
>>
35 Gal
35 Gal

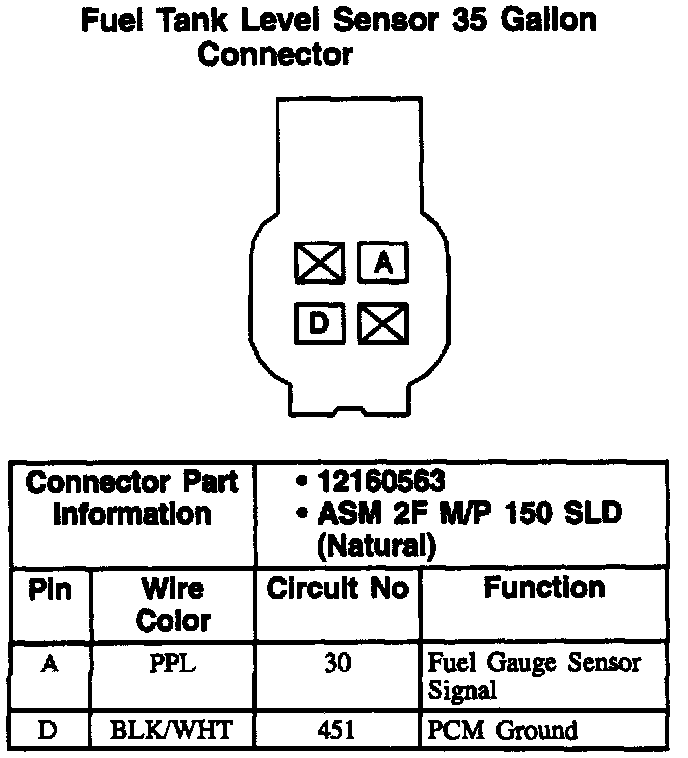

Fuel Tank Level Sensor 35 Gal Connector:
