Control Valve Body Assembly









ASSEMBLE

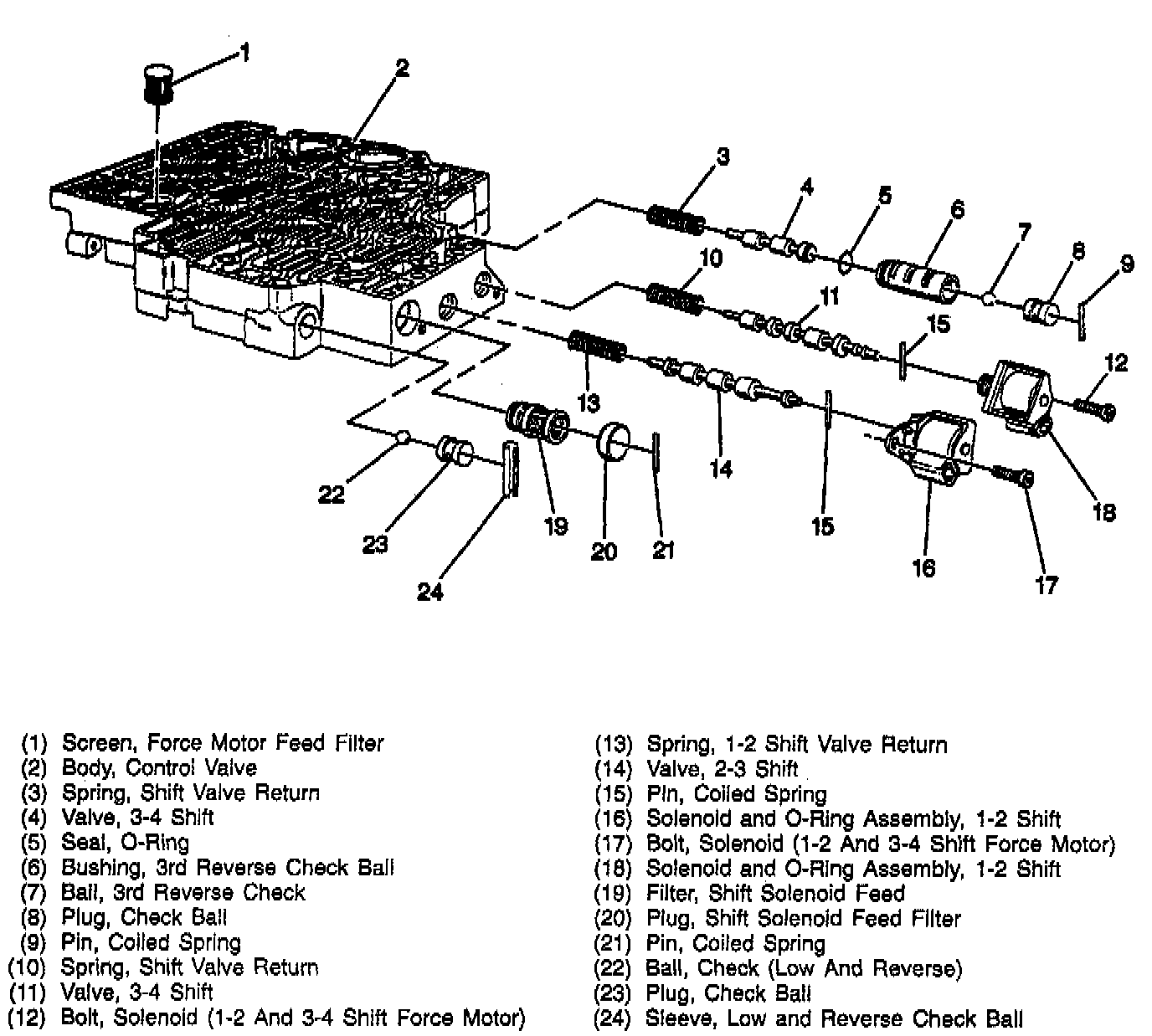

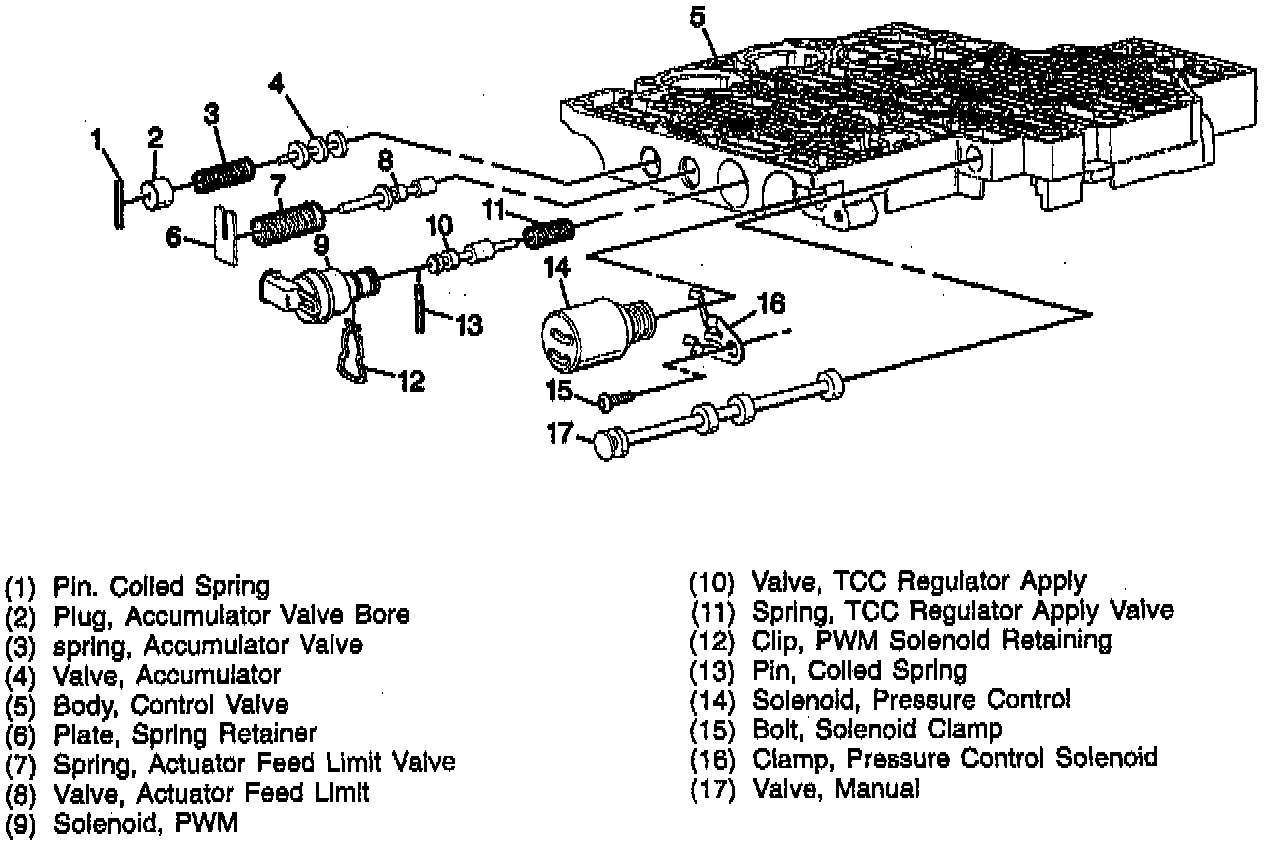

- Control valve assembly components exactly as shown. Notice the position of the valve lands and bushing passages.
