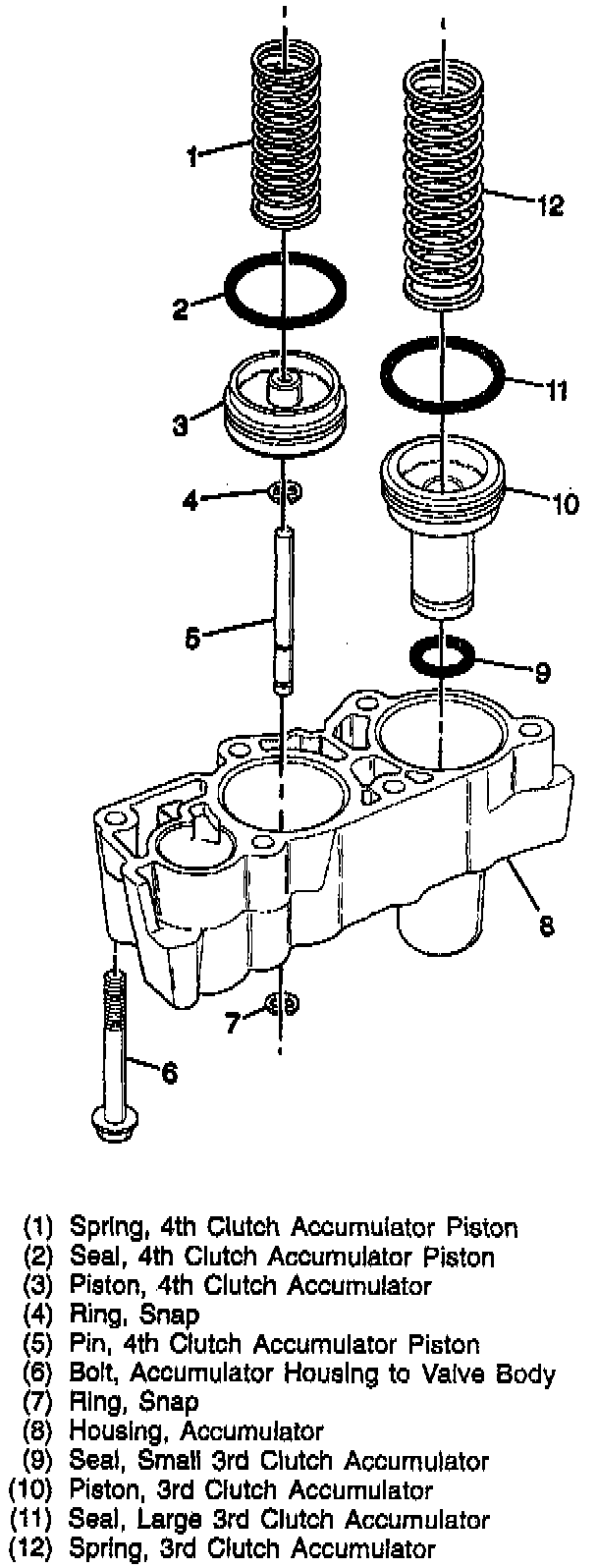

Accumulator Housing Assembly

DISASSEMBLE
1. Snap ring from the outside housing, pin, snap ring, piston, and the spring.
2. Third clutch piston and spring.
3. Seals.

ASSEMBLE
- Accumulator housing assembly components exactly as shown. Notice the positions of the valve and pistons.
