Chevy Truck
>>
1997
>>
G 3500 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>

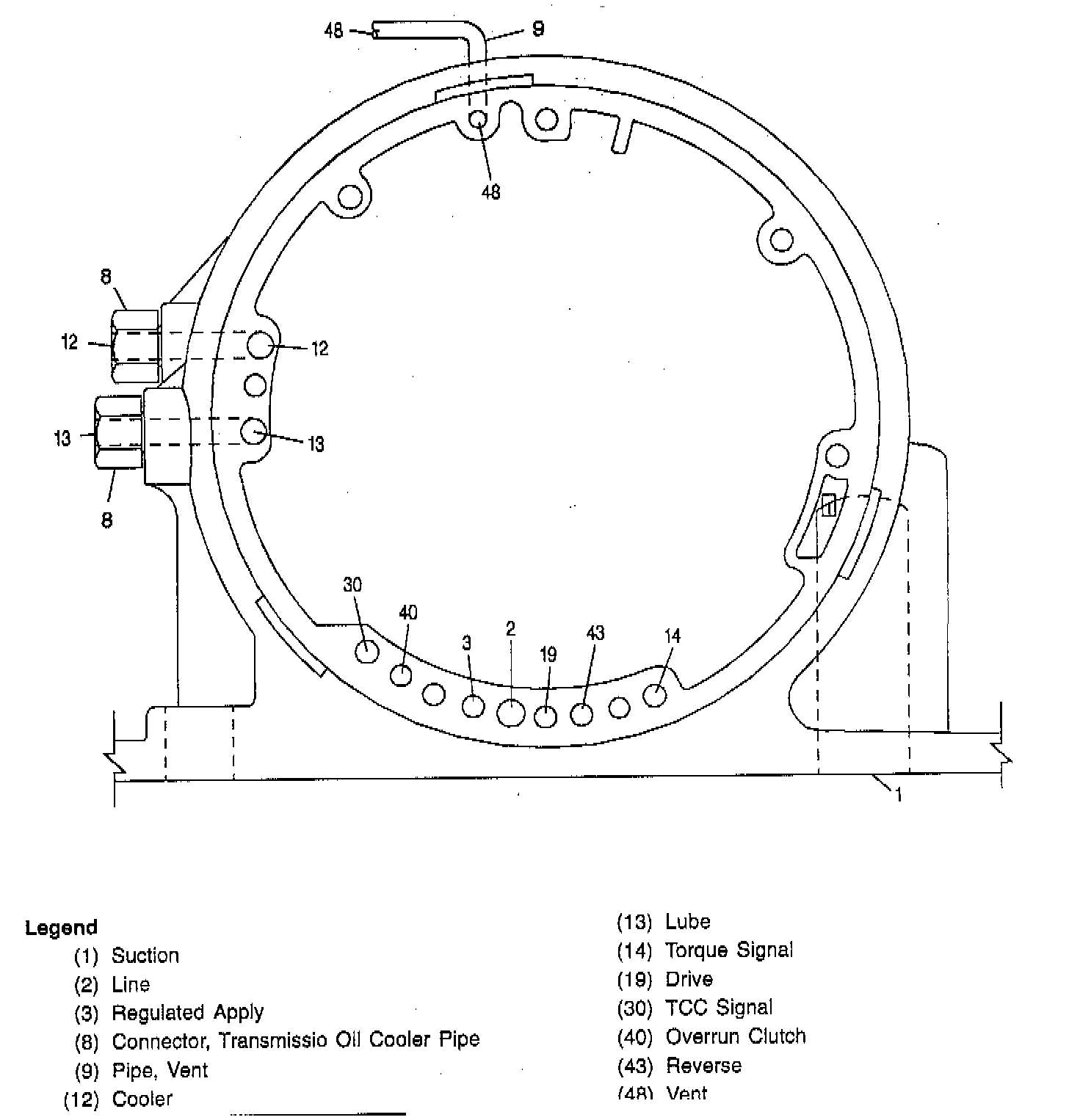

Case Oil Passages - Pump Attaching Surface
Case Oil Passages - Pump Attaching Surface
