Disassemble

1. Remove the cooling jacket plugs by using the following procedure:
(1) Obtain a suitable self-threading screw.
(2) Drill a hole into the plug.
(3) Install the self-threading screw.
(4) Remove the jacket plugs.

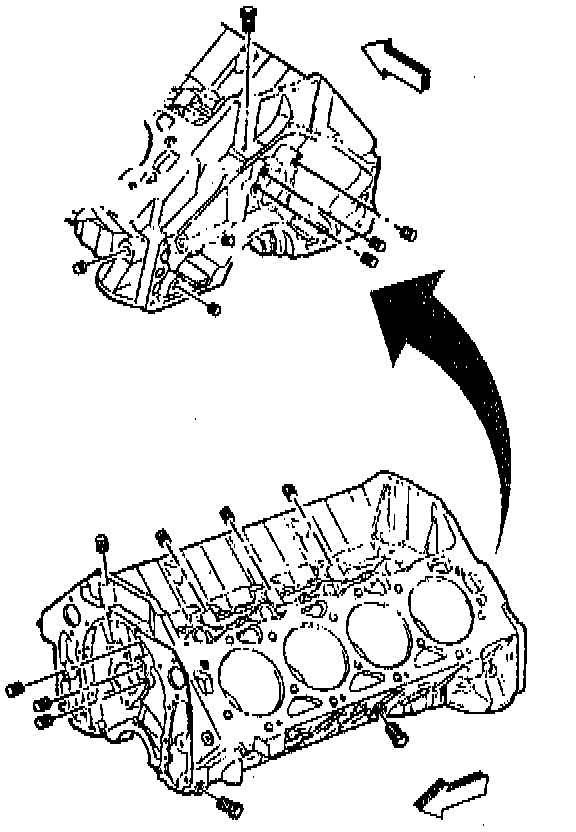

2. Remove the oil gallery plugs.
3. Remove the fuel pump/oil pressure switch.
4. Remove the knock sensor.

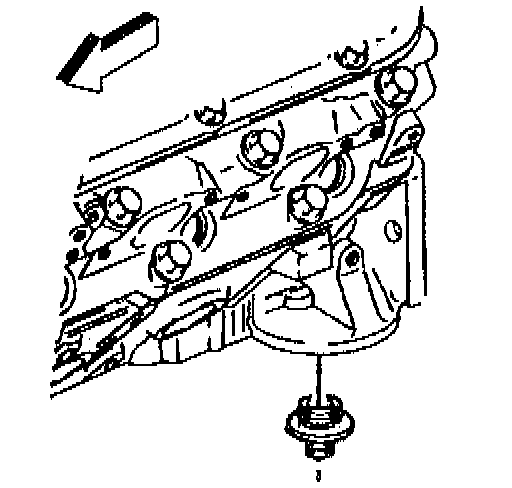

5. Remove the oil filter fitting.

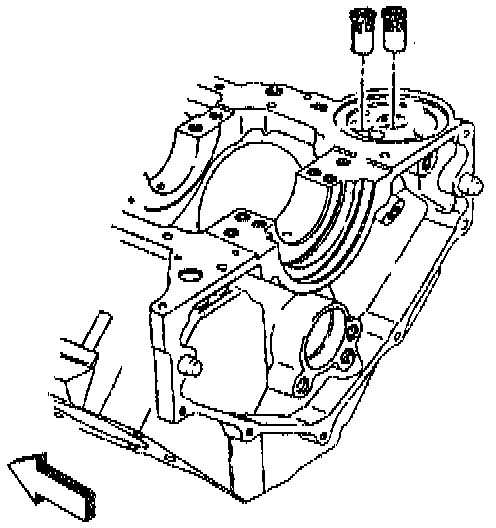

6. Remove the oil bypass valves. Discard the valves.
