Chevy Truck
>>
1997
>>
G 3500 1 Ton Van V8-454 7.4L VIN J SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Fuel Injector
Fuel Injector
In-Line Connector C112 (Fuel Injector):

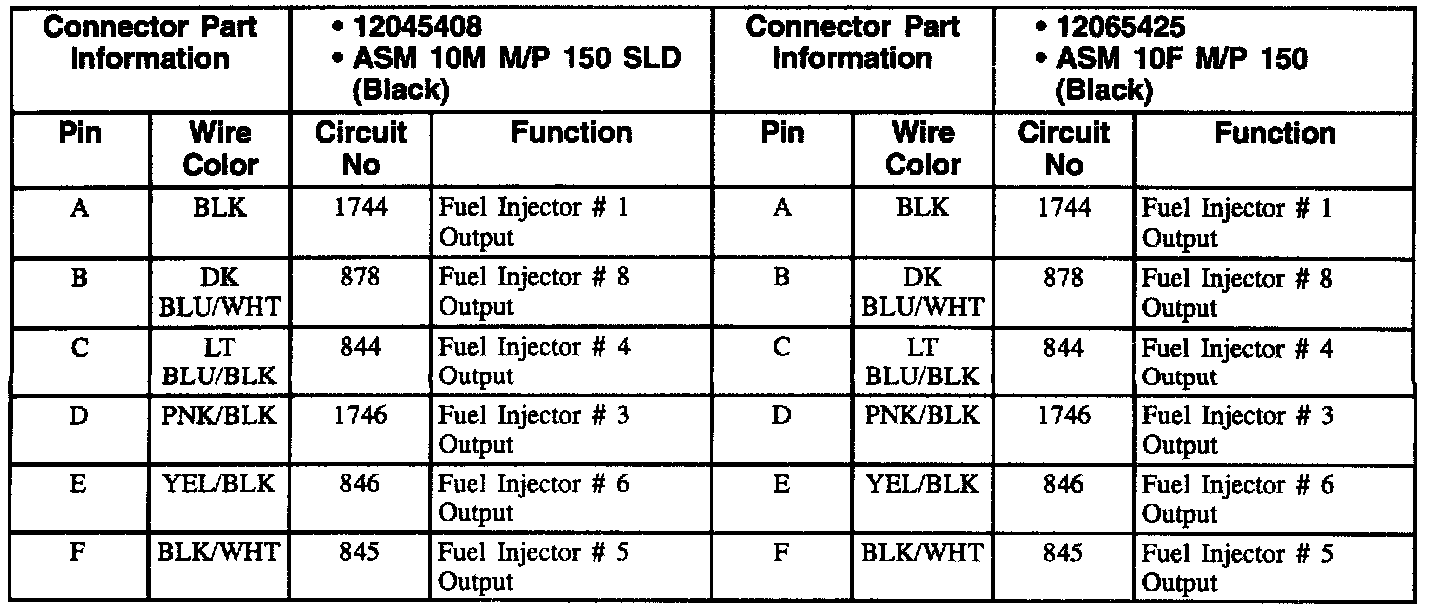

In-Line Connector C112 (Fuel Injector) (Part 1 Of 2):

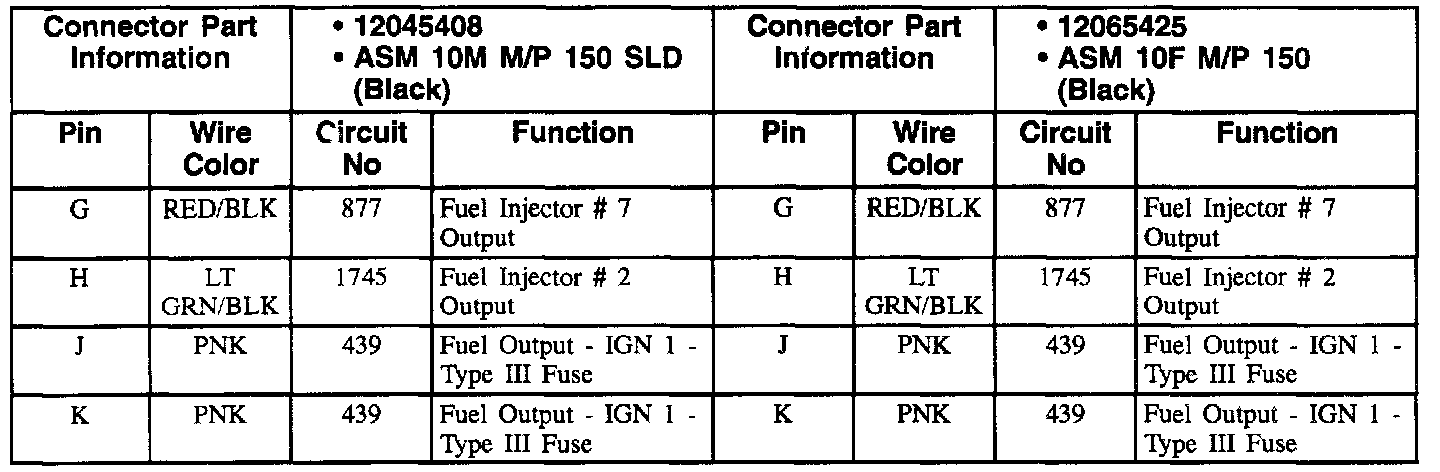

In-Line Connector C112 (Fuel Injector) (Part 2 Of 2):
