Chevy Truck
>>
1997
>>
G 2500 3/4 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
EGR Control Solenoid
>>
Diagrams
>>
Connector Views
Connector Views

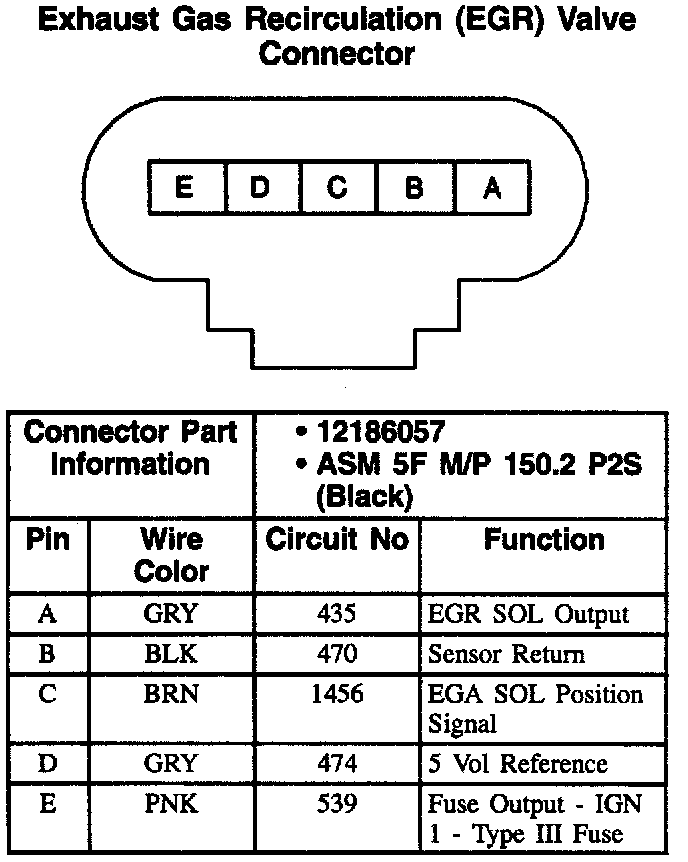

Exhaust Gas Recirculation (EGR) Valve Solenoid Connector:
