Chevy Truck
>>
1997
>>
G 1500 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>
Right Outside Mirror
Right Outside Mirror

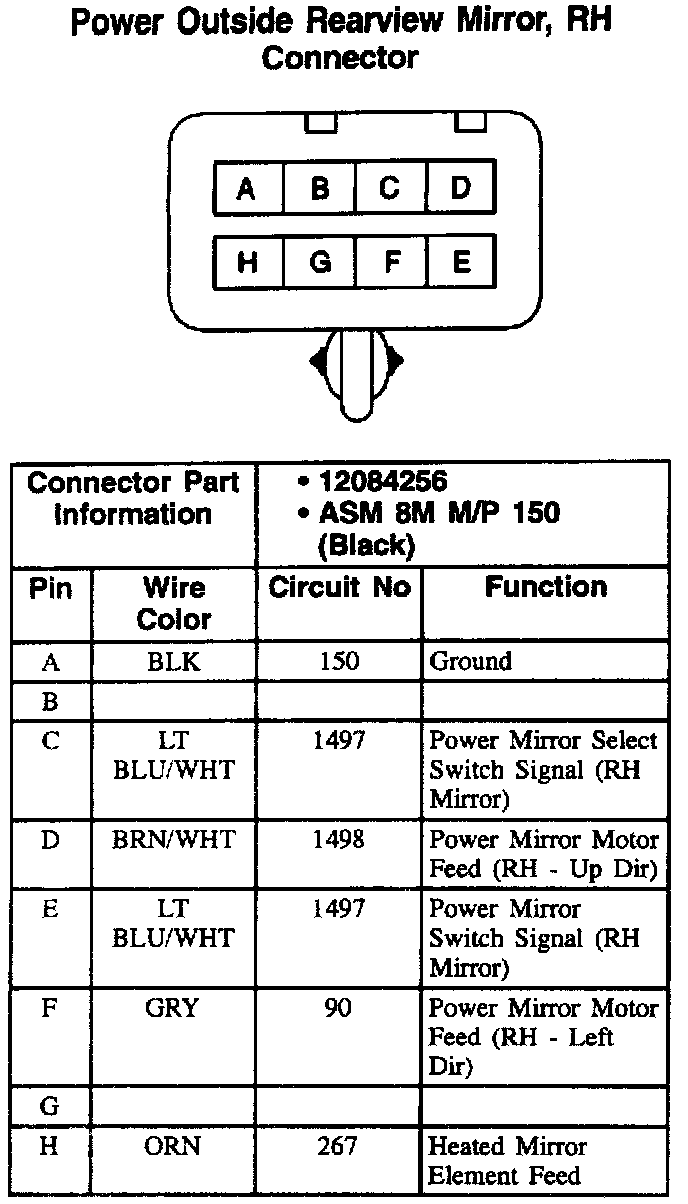

Power Outside Rear View Mirror, RH Connector:
