Brake Pad: Service and Repair

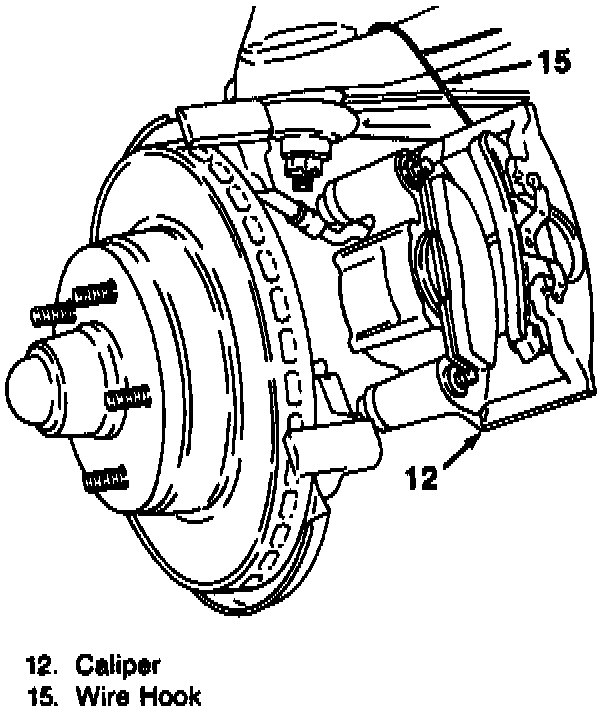

Suspending The Caliper:

REMOVE OR DISCONNECT
1. Brake caliper.

CAUTION: Suspend the caliper. Do not let it hang by brake hose.

Removing The Outboard Shoe And Lining:

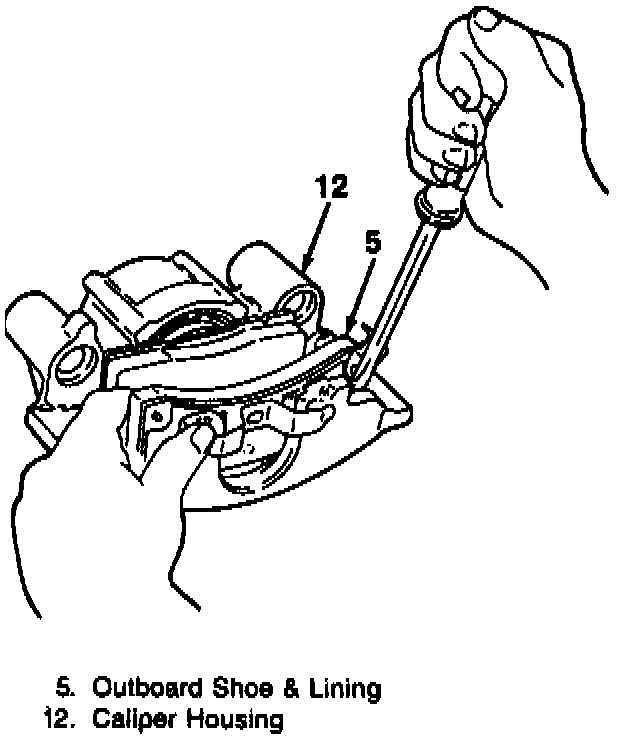

2. Outboard shoe and lining (5).
^ Use a screwdriver to disengage the buttons on the pad from the holes in the caliper housing.
3. Inboard shoe and lining (7).
4. Inspect mounting bolts, key, spring, and sleeves for corrosion. Replace if any is found. Inspect bolt boots for nicks, cuts, or corrosion. Replace if any are found.

CAUTION: Do not attempt to polish away corrosion.

NOTE: Clean the caliper assembly and install a new brake hardware kit any time it is removed from the rotor.

INSTALL OR CONNECT

CAUTION:
^ Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. General Motors will call out those fasteners that require a replacement after removal General Motors will also call out the fasteners that require thread lockers or thread sealant UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you Install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

^ Any new rotor must have the protective coating removed from the friction surfaces before being placed in service. Use Goodwrench Brake Parts Cleaner GM PIN 12345754 or equivalent, and wipe the surface clean with clean cloths. Do not use gasoline, kerosene, or other oil base solvents which may leave an oily residue. This residue is damaging to brake linings and flammable

Installing The Inboard Lining:

1. Lubricate bushings (3) and mounting bolt seals (4) with Delco Silicone Lube GM PIN 18010909 or equivalent.

Installing The Inboard Lining:

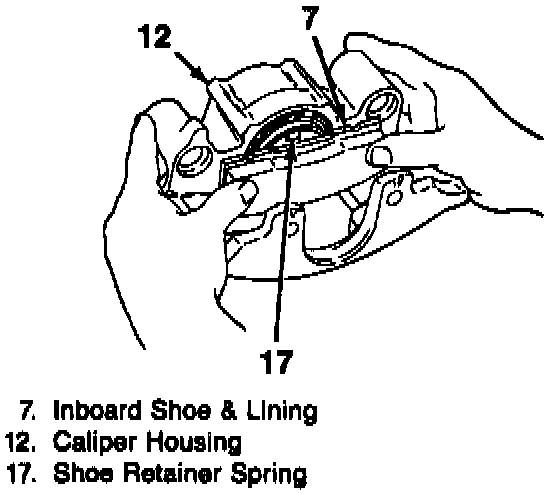

2. Inboard lining (7).
a) Snap retainer spring (17) into piston (9).
b) The pad retainer spring (17) is already staked to inboard shoe.
c) The pad must lay flat against piston.

Installing The Outboard Lining:

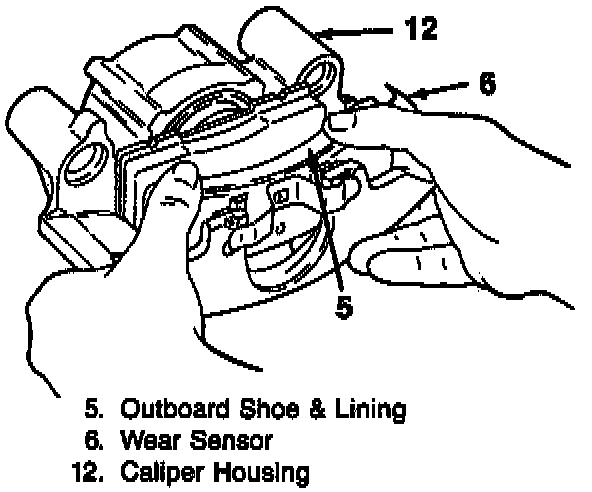

3. Outboard lining (5) with wear indicator (6) at leading edge of pad during forward wheel rotation.

NOTE: The back of pad must lay flat against caliper.

4. Brake caliper (12).

CAUTION: Before moving the vehicle, pump the brake pedal several times to make sure it is firm. Do not move the vehicle until a firm pedal is obtained. Check the fluid level in the master, cylinder after pumping the brakes.
