Chevy Truck
>>
1997
>>
G 1500 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Switch, Sensor, and GND Controls
Switch, Sensor, and GND Controls

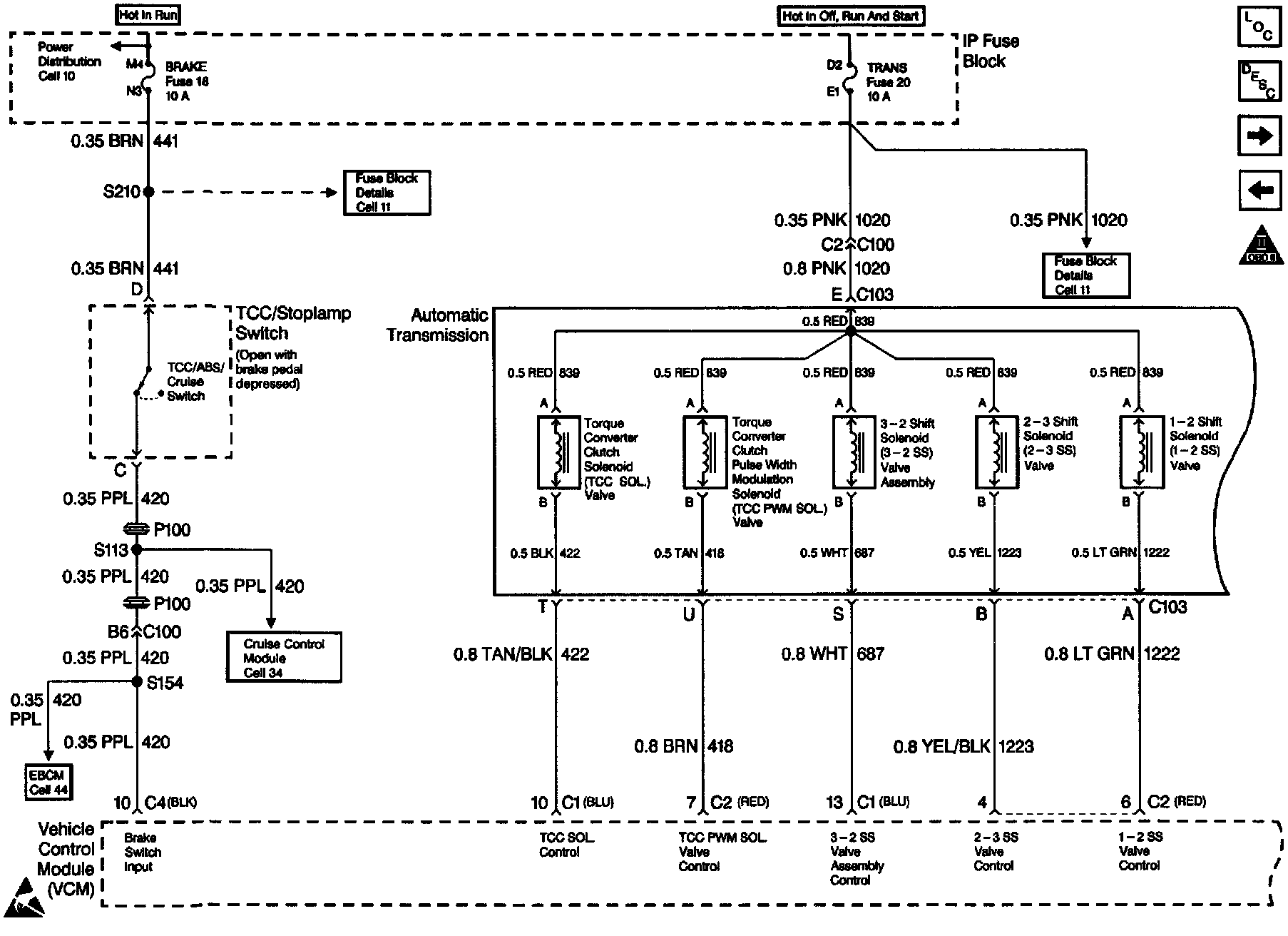

Wiring Diagram:
