Chevy Truck
>>
1997
>>
G 1500 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Part 2
Part 2

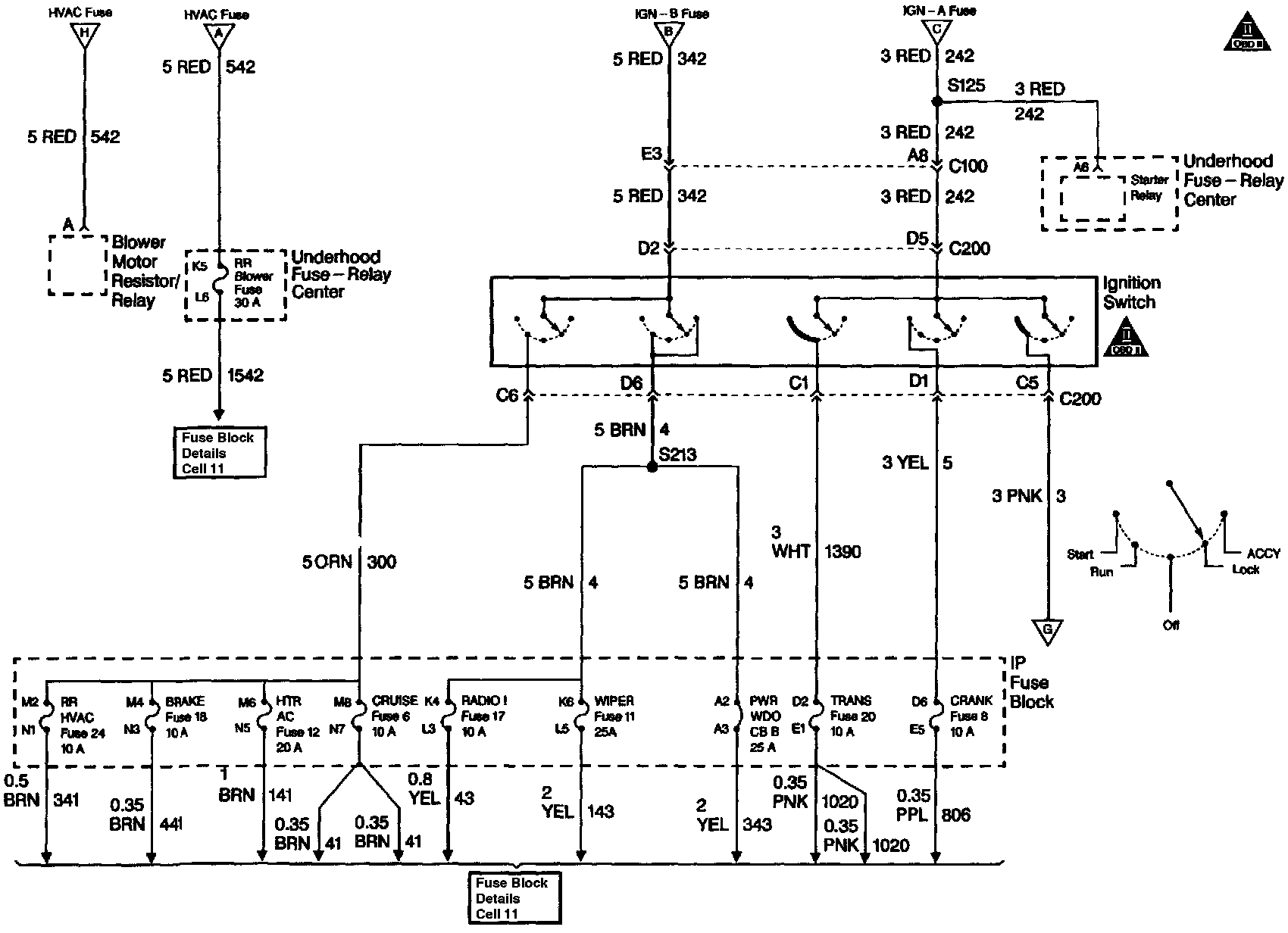

Power Distribution:
