Daytime Running Lamp Diode Assembly: Service and Repair

Description:

REMOVE OR DISCONNECT
1. The left hand knee bolster trim panel.
2. The bolt retaining the DRL diode to the left inside knee bolster bracket.
3. The electrical connector from the DRL diode.
4. The DRL diode from the vehicle.

INSTALL OR CONNECT
1. The DRL diode to the vehicle.
2. The electrical connector to the DRL diode.

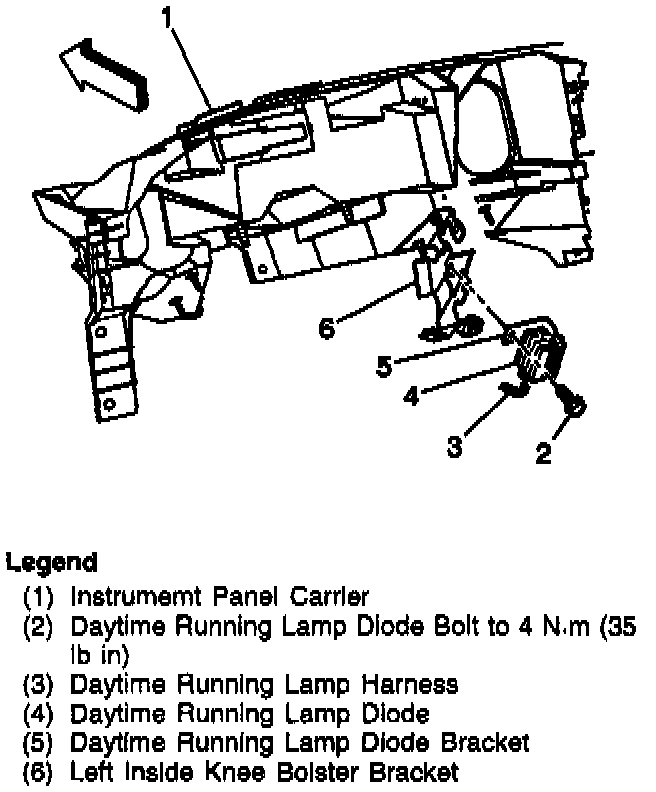

3. The bolt retaining the DRL diode to the left inside knee bolster bracket.

Tighten
^ The bolt to retain the daytime running lamp diode bracket to 4 Nm (35 lb. in).

4. The left hand knee bolster trim panel.
