Chevy Truck
>>
1997
>>
G 1500 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>
Left Outside Mirror
Left Outside Mirror

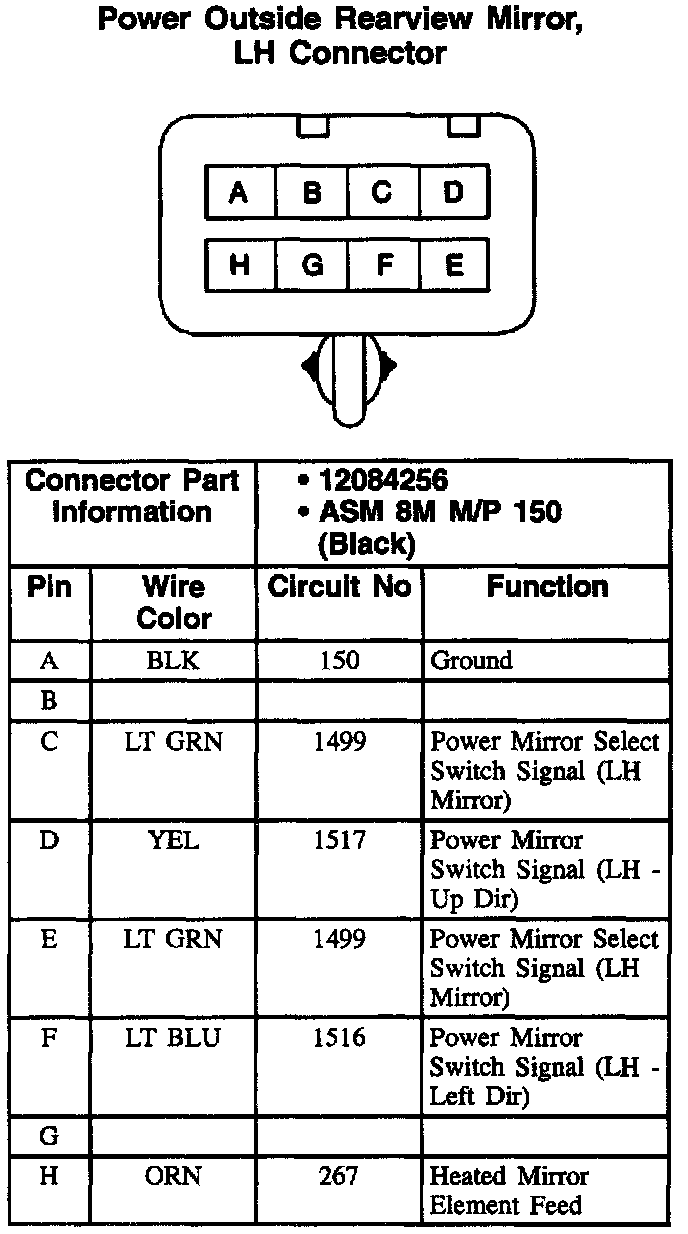

Power Outside Rear View Mirror, LH Connector:
