Replacement

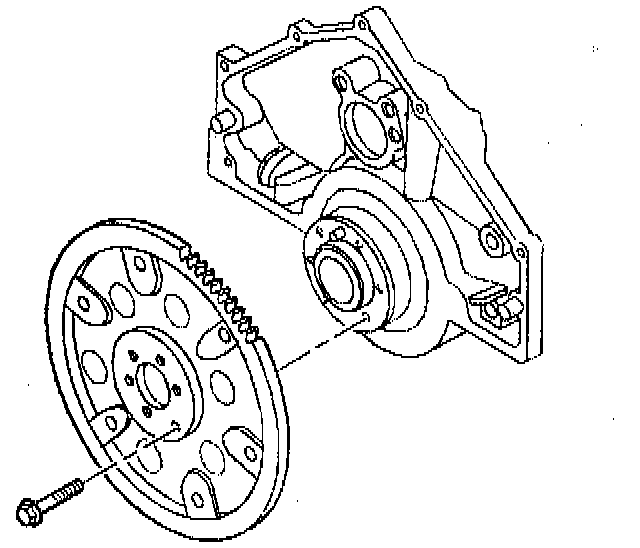

REMOVAL
1. Remove the transmission.
2. Remove the flywheel bolts.
3. Remove the flywheel.

INSTALLATION
1. Install the flywheel.
2. Install the flywheel bolts.
- Tighten the bolts to 90 Nm (65 lb ft).
3. Install the transmission.
