Replacement, Engine Overhaul

REMOVAL

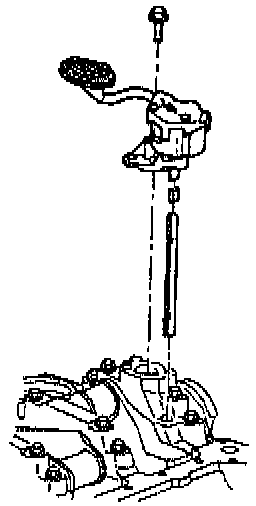

1. Remove the oil pump bolts.
2. Remove the oil pump and drive shaft assembly.

INSTALLATION
1. Install the oil pump with the driveshaft.
2. Install the oil pump bolts.
- Tighten the oil pump bolts to 90 Nm (65 ft. lbs.).
