Chevy Truck
>>
1997
>>
C Tahoe 2WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine
>>
System Diagram
>>
Engine to I/P
Engine to I/P

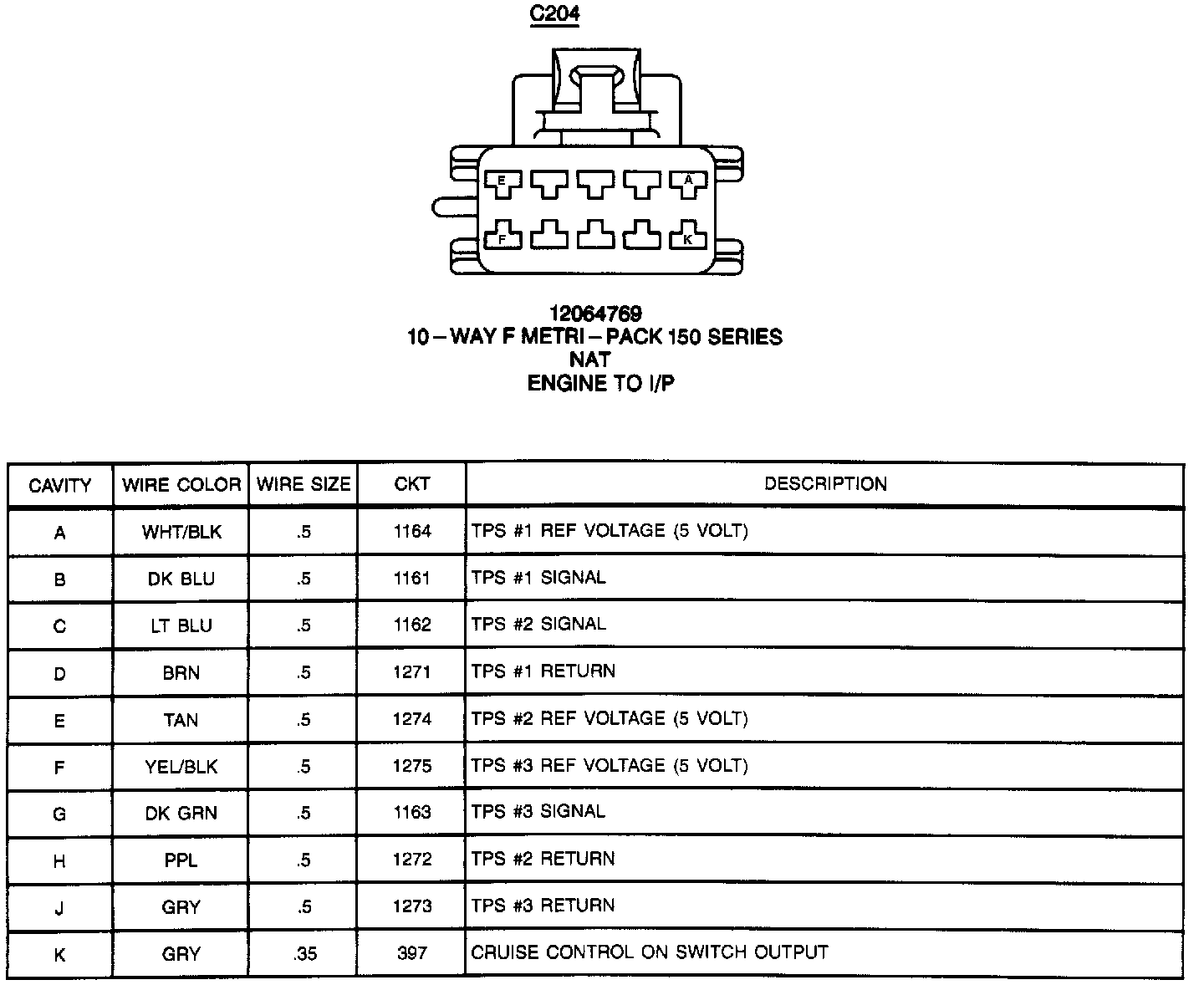

Engine To I/P: C204:
