Wiper Motor Assembly Replacement

REMOVE OR DISCONNECT
1. Negative battery cable.

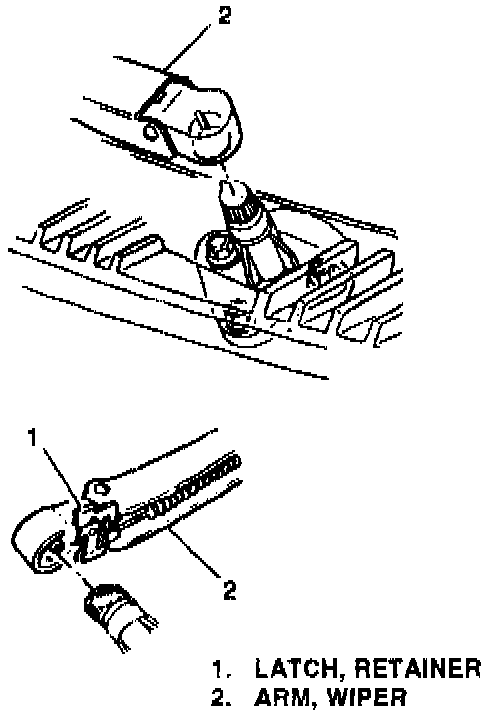

2. Wiper arm assemblies.
^ Lift the wiper arm into the servicing position, and move the latch into the open position before removing the wiper arm.
3. Cowl vent grille.
4. Electrical connector from the motor assembly.
5. Drive link brackets from the wiper motor crank arm. DO NOT REMOVE THE CRANK ARM.
^ Loosen the nuts and slide the brackets off the crank arm.
6. Wiper motor screws and wiper motor assembly from the vehicle.

INSTALL OR CONNECT
1. Wiper motor assembly to the vehicle
2. Wiper motor screws.

Tighten
^ Screws to 7 Nm (62 Lbs. in.).

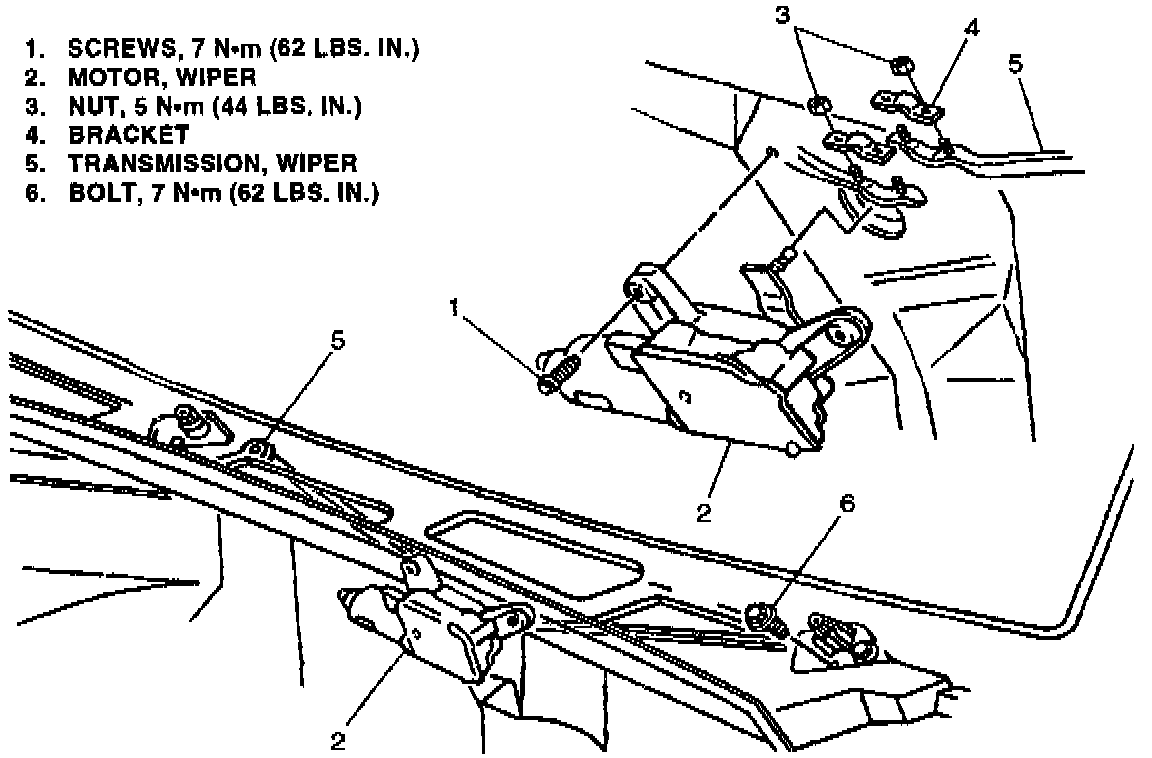

3. Drive link brackets to the wiper motor crank arm. Assemble the brackets in the order shown in Figure 20. (Right side linkage closest to the wiper motor).
^ Drive link nuts to 5 Nm (44 Lbs. in.).
4. Electrical connector to the wiper motor.
5. Cowl vent grille.
6. Wiper arm assemblies.
^ Place the wiper arms on the transmission drive shafts and lock them into place with the latch.
7. Negative battery cable.
