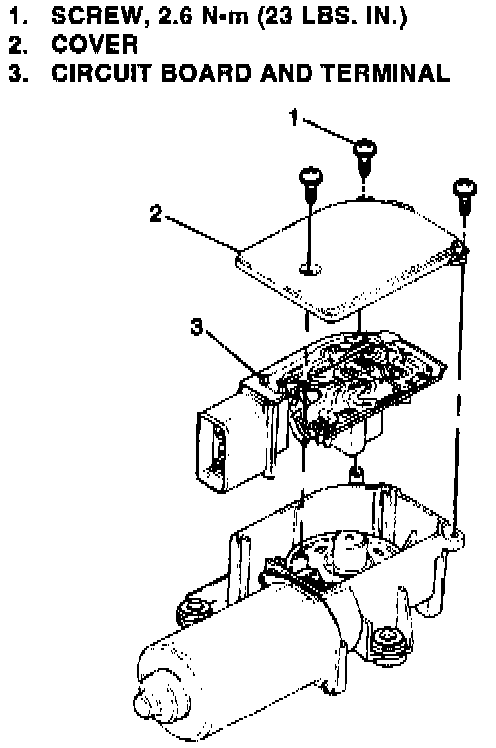

Circuit Board and Terminal Assembly Replacement

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Wiper motor electrical connector.
3. Cover screws.
4. Cover.
5. Circuit board and terminal assembly by lifting up on terminal.

INSTALL OR CONNECT
1. Circuit board and terminal assembly.
2. Cover and three screws.
Tighten
^ Screws to 2.6 Nm (23 lbs. in.).
3. Wiper motor electrical connector.
4. Negative battery cable.
