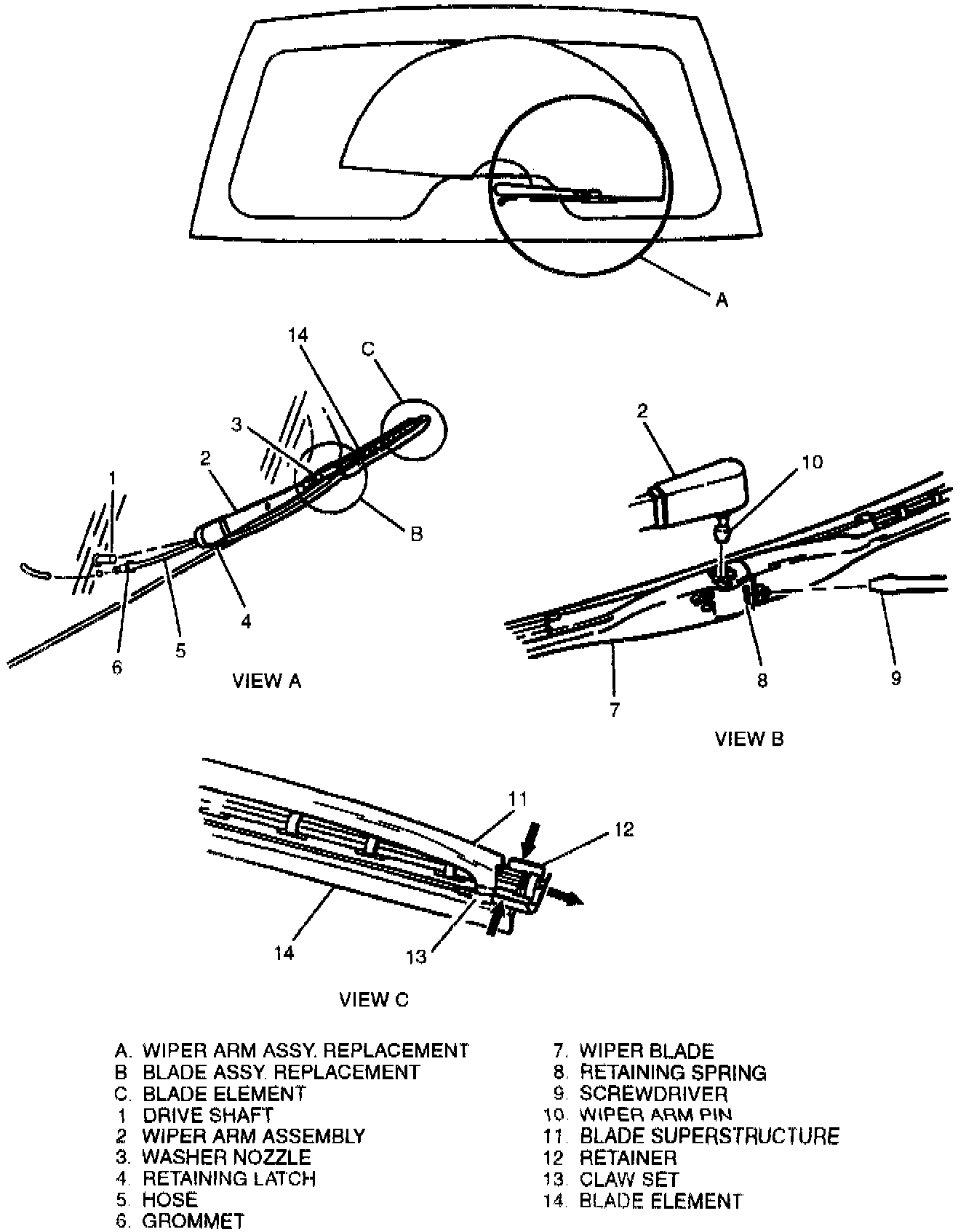

Wiper Blade Assembly Replacement

REMOVE OR DISCONNECT
1. Wiper blade assembly.
A. Insert a screwdriver into the blade retainer slot over the spring.
B. Pivot the screwdriver so the blade tip presses downward on the retainer spring, releasing the pin of the wiper arm.

IMPORTANT
^ Protect the glass when removing the wiper blade assembly.

INSTALL OR CONNECT
1. Wiper blade assembly by pressing the pin of the wiper arm assembly into the blade retainer until the pin is engaged.
