Chevy Truck
>>
1997
>>
C 2500 Suburban 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

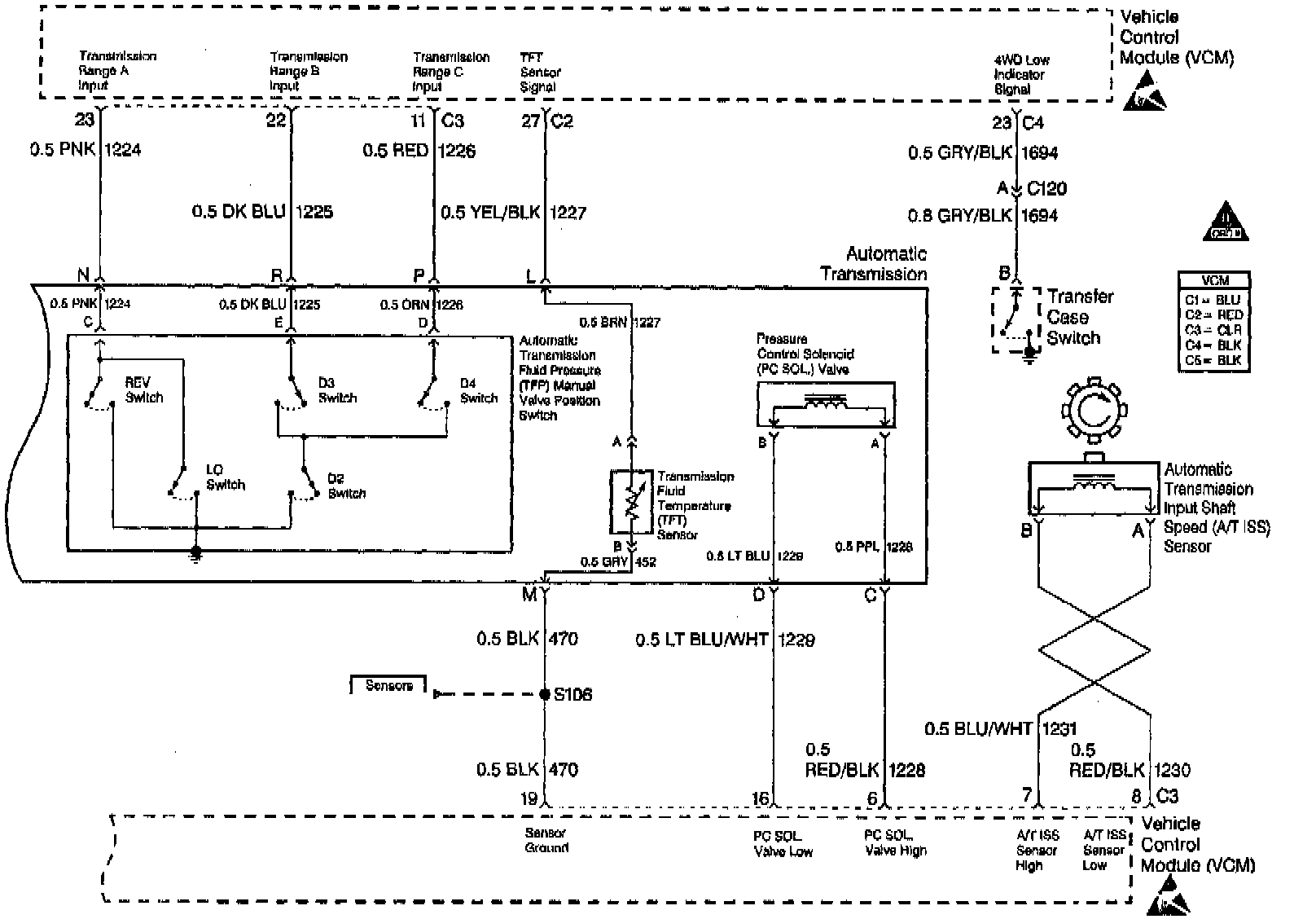

VCM, Transmission, Solenoids
VCM, Transmission, Solenoids
