Home
>>
Chevy Truck
>>
1997
>>
C 2500 Suburban 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
4L80-E Automatic Transmission
>>

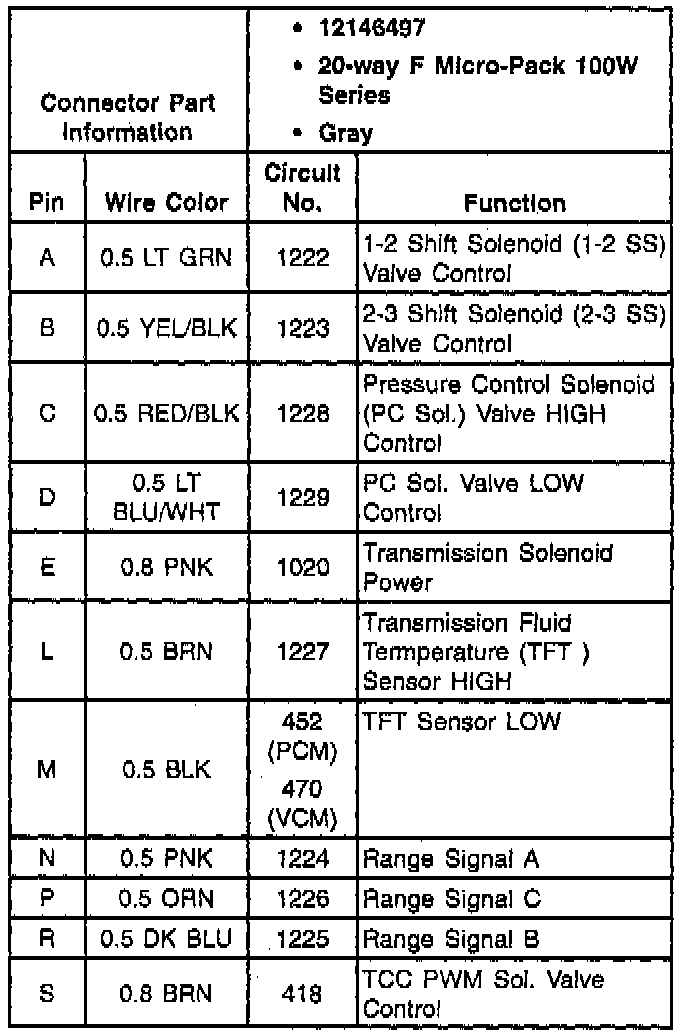

Transmission 20-Way Connector - Engine Side
Transmission 20-Way Connector - Engine Side
